    HVG MARINE VALVE 0152

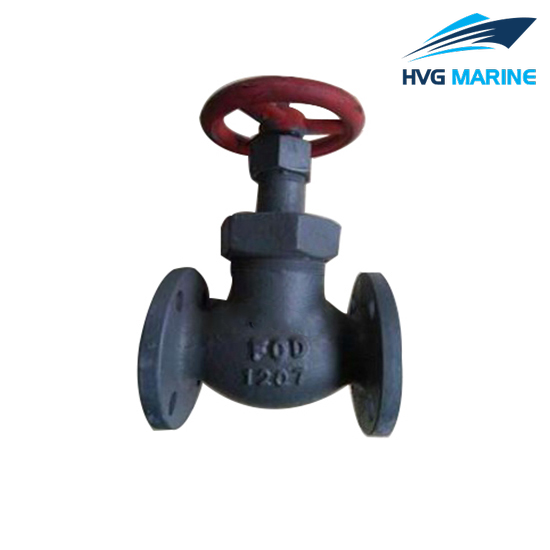

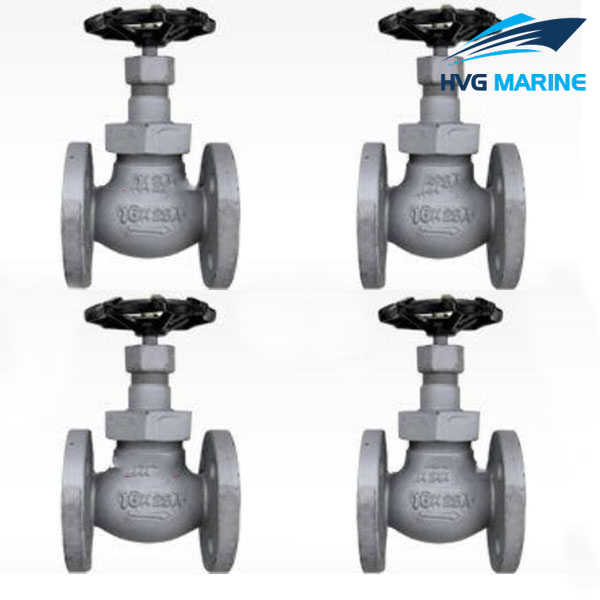

    HVG MARINE VALVE 0152: Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

    1.Test standard: JISF7400.

    2.End standard: JIS B2220.

    3.End type:Flange.

    4.Pressure: 16k.

    5.DN:15mm-40mm.

    6.Main material:

    • Body/Bonnet: FCD450;
    • Seat: SS410/BC6;
    • Stem: SS410/H62;
    • Disc: SS410/BC6.

    7.Application: Oil piping and water piping.

    8.Function:Such valves are used for on-off duty and regulating the flow rate.

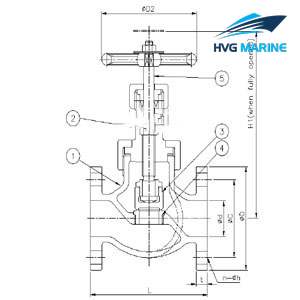

    Drawing of Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

    Technical specification:

    • Specification of Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

    IMPA

    DN/mm

    Face to face/L(mm)

    Flange diam./D(mm)

    Flange pitch/C(mm)

    Flange hoile/n*d(mm)

    Weight/kg

    750321

    15

    110

    95

    70

    4xΦ15

    2.91

    750322

    20

    120

    100

    75

    4xΦ15

    3.85

    750323

    25

    130

    125

    90

    4xΦ19

    5.57

    750324

    32

    160

    135

    100

    4xΦ15

    7.40

    750325

    40

    180

    140

    105

    4xΦ19

    9.29
