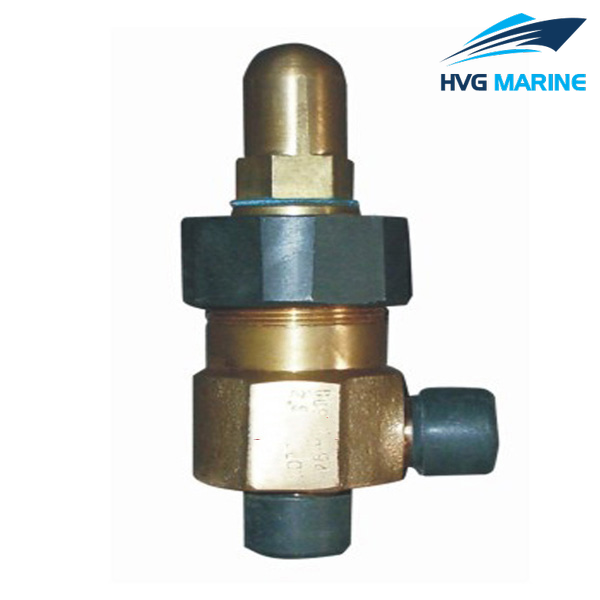

HVG MARINE VALVE 0095: Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994:
1.Design standard:CB907-1994.
2.End standard:CB56-80.
3.End type:Thread.
4.DN:10mm-25mm.
5.Main material:
6.Application:Sea water piping,fresh water piping and oil piping.
7.Function:Such valves are used for pressure control.

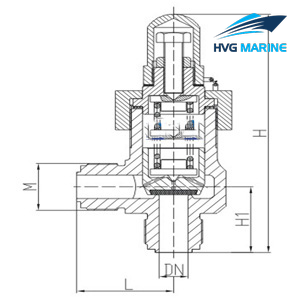

Drawing od Marine Bronze Male Screw Thread Angle Safety Valve CB907-1994:
|
DN |
PN |
Flange connection dimension |
Height |
Structure length |
|
mm |
Mpa |
M/mm |
H/mm |
L/mm |
|
10 |
0.1~0.25 |
M22x1.5 |
138 |
40 |
|
0.25~0.6 |
||||
|
0.6~0.9 |
||||
|
0.9~1.2 |
140 |
|||
|
1.2~1.6 |
||||
|
1.6~2.5 |
M27x1.5 |
146 |
42 |
|
|
2.5~3.2 |
149 |
|||
|
15 |
0.1~0.25 |
M30x2 |
148 |
48 |
|
0.25~0.6 |
||||
|
0.6~0.9 |
||||
|
0.9~1.2 |
155 |
|||
|
1.2~1.6 |
||||
|
1.6~2.5 |
M36x2 |
162 |
50 |
|
|
2.5~3.2 |
||||
|
20 |
0.1~0.25 |
M36x2 |
170 |
55 |
|
0.25~0.6 |
||||
|
0.6~0.9 |
||||
|
0.9~1.2 |
||||
|
1.2~1.6 |
||||
|
1.6~2.5 |
M39x2 |
176 |
60 |
|
|
2.5~3.2 |
186 |
|||
|
25 |
0.1~0.25 |
M42x2 |
190 |
60 |
|
0.25~0.6 |
||||
|
0.6~0.9 |
||||
|
0.9~1.2 |
||||
|
1.2~1.6 |
197 |
|||
|
1.6~2.5 |
M48x2 |
203 |
67 |
|
|
2.5~3.2 |
210 |
