MARINE VALVE 0088
    • MARINE VALVE 0088
    HVG MARINE VALVE 0088

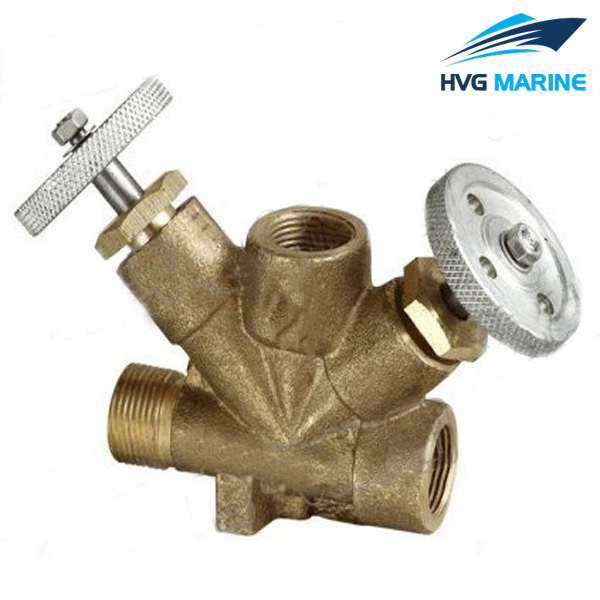

    HVG MARINE VALVE 0088: Marine pressure Gauge Valve CB312-1977

    1.Design standard:CB312-1977.

    2.End standard:CB56-80.

    3.End type:Thread.

    4.PN:4.0/10.0/16.0Mpa.

    5.DN:6mm.

    6.Main material:

    • Body/Bonnet:ZCuSn16Si4;
    • Seat:ZCuSn16Si4;
    • Stem:2Cr13;
    • Disc:QAl9-2.

    7.Application:Water,air,oil and steam piping.

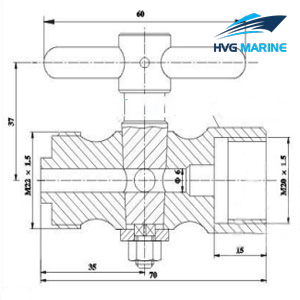

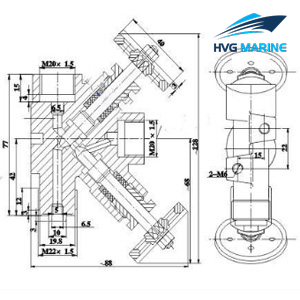

    Drawing of Marine pressure Gauge Valve CB312-1977:

    Technical specification:

    • Fundamental dimensions of Marine pressure Gauge Valve CB312-1977:

    Type

    PN/Mpa

    DN/mm

    Weight/kg

    A

    4.0

    6

    0.22

    B

    10.0

    0.60

    16.0

    0.59
