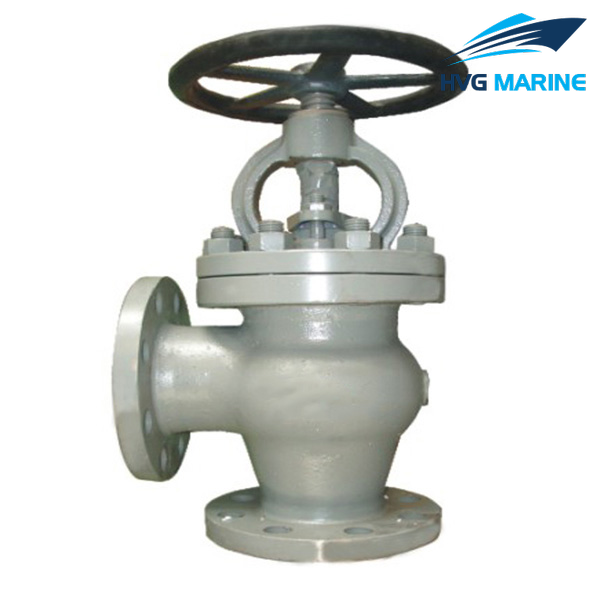

HVG MARINE VALVE 0086: Marine Flanged Cast Steel stop valve CB/T4004-2005:
1.Design standard:CB/T4004-2005.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.PN:2.0Mpa.
5.DN:32mm-250mm.
6.Main material:
7.Application:Fresh water, air, gas, steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.

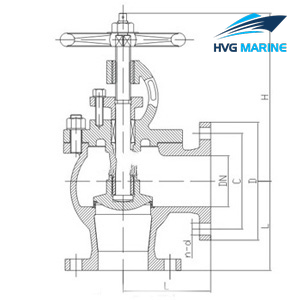

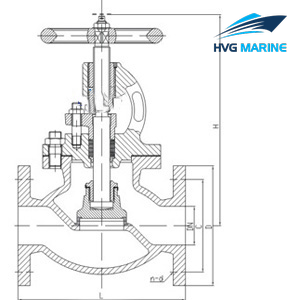

Drawing of Marine Flanged Cast Steel stop valve CB/T4004-2005:
|
DN |
Flange connection dimension |
Height |
Structure length |
|||||
|
H/mm |
L/mm |
|||||||
|
mm |
D/mm |
C/mm |
n |
d/mm |
AJ |
BJ |
AJ |
BJ |
|
32 |
135 |
100 |
4 |
19 |
270 |
250 |
190 |
100 |
|
40 |
140 |
105 |
4 |
19 |
290 |
265 |
200 |
110 |
|
50 |
155 |
120 |
8 |
19 |
305 |
275 |
230 |
125 |
|
65 |
175 |
140 |
8 |
19 |
345 |
305 |
270 |
135 |
|
80 |
200 |
160 |
8 |
23 |
385 |
340 |
300 |
150 |
|
100 |
225 |
185 |
8 |
23 |
440 |
385 |
350 |
170 |
|
125 |
270 |
225 |
8 |
25 |
500 |
440 |
430 |
200 |
|
150 |
305 |
260 |
12 |
25 |
550 |
485 |
500 |
225 |
|
200 |
350 |
305 |
12 |
25 |
630 |
540 |
560 |
280 |
|
250 |
430 |
380 |
12 |
27 |
725 |
629 |
660 |
310 |
