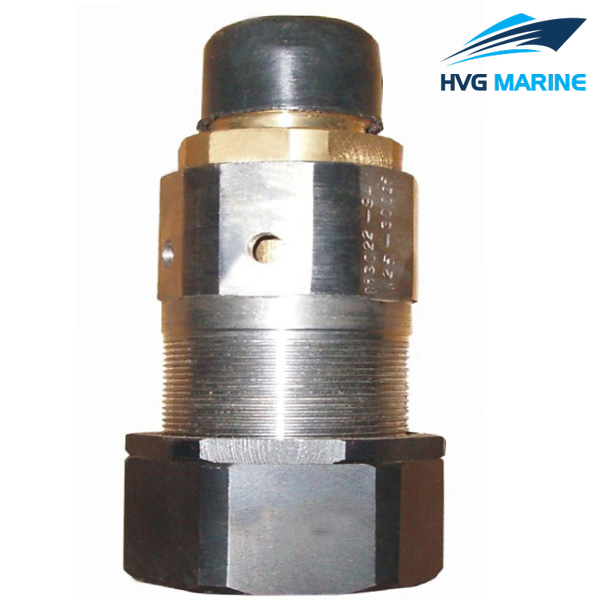

HVG MARINE VALVE 0094: Marine Male screw Thread Air Signal Safety Valve CB3022-1994:
1.Design standard:CB3022-1994.
2.End standard:CB56-80.
3.End type:Thread.
4.DN:10mm-25mm.
5.Main material:
6.Application:Compressing air of ship.
7.Function:Such valves are used for pressure control.

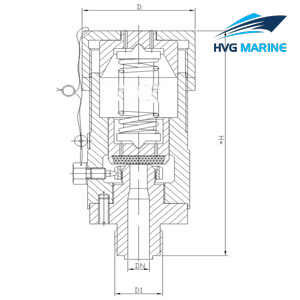

Drawing of Marine Male screw Thread Air Signal Safety Valve CB3022-1994:
|
DN |
Working pressure |
Structure dimension |
Connection dimension |
|
|
mm |
Mpa |
D/mm |
H/mm |
D1/mm |
|
10 |
0.1~ 0.25 |
55 |
116 |
M22x1.5 |
|
0.25~0.6 |
||||
|
0.6~1.2 |
117 |
|||
|
1.2~1.6 |
||||
|
1.6~2.5 |
M27x1.5 |
|||
|
2.5~3.5 |
||||
|
3.5~4.0 |
||||
|
4.0~6.5 |
142 |
|||
|
15 |
0.1~0.25 |
67 |
128 |
M30x2 |
|
0.25~0.6 |
||||
|
0.6~0.9 |
||||
|
0.9~1.2 |
129 |
|||
|
1.2~1.6 |
131 |
M36x2 |
||
|
1.6~2.2 |
||||
|
2.2~3.5 |
136 |
|||
|
3.5~5.0 |
139 |
|||
|
5.0~6.5 |
140 |
|||
|
20 |
0.1~0.25 |
67 |
130 |
M36x2 |
|
0.25~0.4 |
||||
|
0.4~0.6 |
135 |
|||
|
0.6~0.9 |
133 |
|||
|
0.9~1.2 |
140 |
|||
|
1.2~1.6 |
133 |
|||
|
1.6~2.2 |
139 |
M39x2 |
||
|
2.2~3.0 |
142 |
|||
|
3.0~3.5 |
144 |
|||
|
25 |
0.1~0.25 |
72 |
148 |
M42x2 |
|
0.25~0.4 |
145 |
|||
|
0.4~0.9 |
||||
|
0.9~1.2 |
||||
|
1.2~1.6 |
||||
|
1.6~2.0 |
M48x2 |
|||
|
2.0~2.5 |
151 |
|||
|
2.5~3.0 |
148 |
|||
|
3.0~3.5 |
150 |
|||
