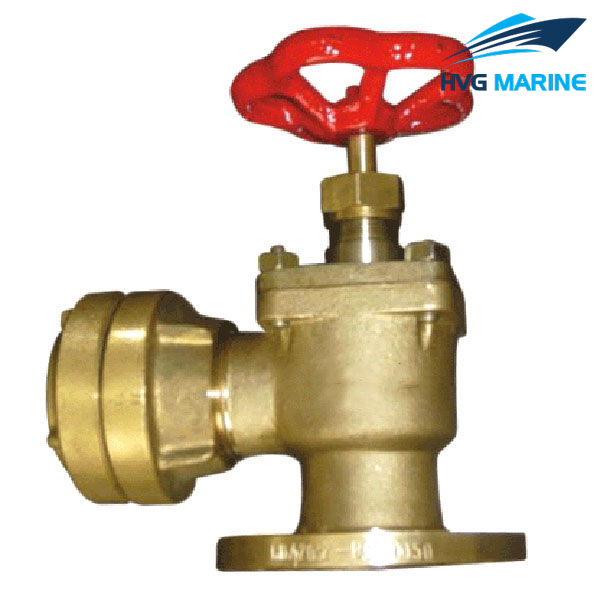

HVG MARINE VALVE 0074: Marine Bronze Fire Valve CBM1107-82

1.Design standard:CBM1107-82.
2.End standard:CBM1020.
3.End type:Flange.
4.PN:1.0Mpa.
5.DN:40mm-65mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Stem:BS;
- Disc:BC6.
7.Application:Sea water piping and fresh water piping.
8.Function: Such valves are used for fire control.

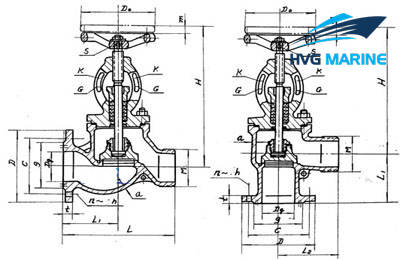

Drawing of Marine Bronze Fire Valve CBM1107-82:

Technical specification:

Fundamental dimensions of Marine Bronze Fire Valve CBM1107-82:

DN	Structure dimension						Flange connection dimension					Thick ness	Bolt		Joint	Hand wheel		Lift range	Weight
DN	H		L	L1		L2	Flange connection dimension					Thick ness	Bolt		Joint	Hand wheel		Lift range	kg
mm	Type A	Type B	Type A	Type A	Type B	Type B	D	C	g	h	t	a	n	Th.	M	D0	S	m	Type A	Type B
40	260	236	175	90	100	75	140	105	85	19	16	5	4	M16	M52x2	120	11	11	8.40	7.90
50	288	258	220	110	120	105	155	120	100	19	16	5	4	M16	M64x2	140	12	14	10.50	10.30
65	335	301	275	135	135	120	175	140	120	19	18	6	4	M16	M80x2	160	14	18	17.85	15.86
