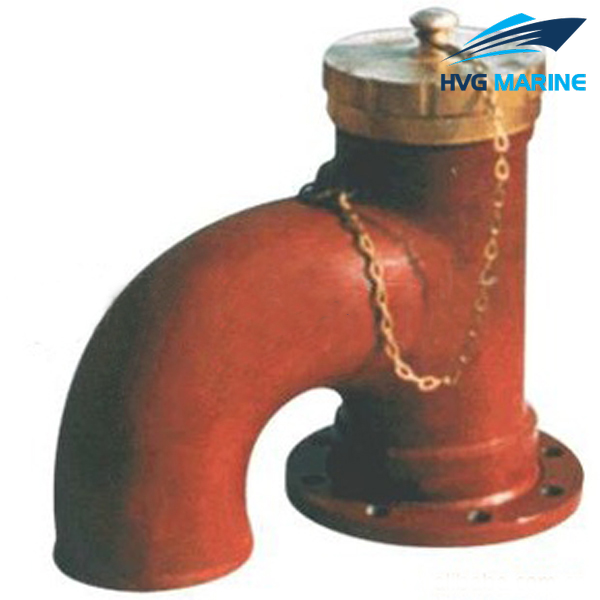

    HVG MARINE VALVE 0072: Marine Air Vent Head CB/T3594-1994 Type C/CS

    • 1.Design standard:CB/T3594-1994.
    • 2.End standard:GB/T2501&GB/T569.
    • 3.End type:Flange.
    • 4.DN:50mm-100mm.
    • 5.Main material:
      • Body/Bonnet:FC/FCD;
      • Disc:SS304.
    • 6.Application:Bunker,water cabin air tube top.
    • 7.Function:Such air vent heads are used for pressure balance.

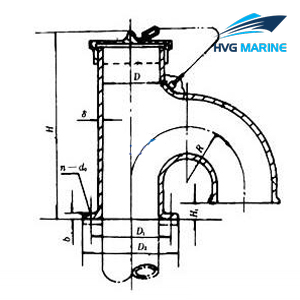

    Drawing of Marine Air Vent Head CB/T3594-1994 Type C/CS:

    Technical specification:

    • Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 Type C/CS:

    DN/mm

    Structure dimension

    Flange connection dimension

    Weight/kg

    H

    H1

    D

    R

    δ

    D2

    D1

    b

    n

    d0

    Cast Iron

    Cast steel

    50

    280

    80

    60

    60

    6

    135

    103

    15

    6

    15

    4.10

    5.10

    140

    110

    16

    4

    14

    4.54

    5.32

    80

    310

    90

    80

    7.5

    170

    138

    14

    8

    15

    9.01

    9.91

    190

    150

    18

    4

    18

    9.20

    10.11

    100

    270

    103

    100

    8

    190

    158

    14

    8

    15

    12.90

    13.81

    210

    170

    18

    4

    18

    13.11

    14.29
