HVG MARINE VALVE 0073

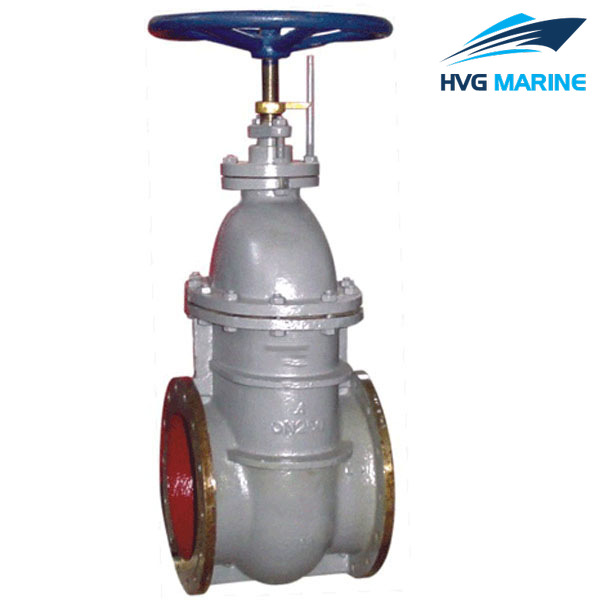

HVG MARINE VALVE 0073: Marine Cast Steel Flanged Gate Valve CBM1092-81

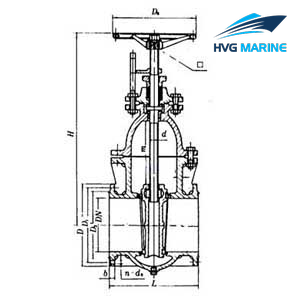

Drawing of Marine Cast Steel Flanged Gate Valve CBM1092-81:

PN	DN	Structure dimension		Flange connection dimension					Bolt		Hand wheel		Weight
Mpa	mm	L	H	D	e	g	h	t	n	TH.	D₀	S	kg
1.0	50	200	340	155	120	100	19	16	4	M16	180	14	19.4
	65	220	372	175	140	120		18	4		180	14	22.0
	80	230	430	185	150	130			8		200	17	25.1
	100	250	459	210	175	155					200	17	30.8
0.5	125	270	527	235	200	180					225	19	44.0
0.5	150	290	566	265	230	210					225	19	56.4
0.4	200	310	658	320	280	255	23	20		M20	250	22	95.1
	250	340	755	385	345	320		22	12		280	24	118.8
	300	380	840	430	390	365		22			280	24	144.5
	350	420	945	480	435	405	25	24		M22	320	27	225.7
	400	480	1045	540	495	465	25	24	16	M22	360	27	287.5
0.2	450	510	1228	605	555	525	23	23	16	M20	400	32	414.6
0.2	500	560	1315	655	605	575	23	23	20	M20	450	32	548.5
