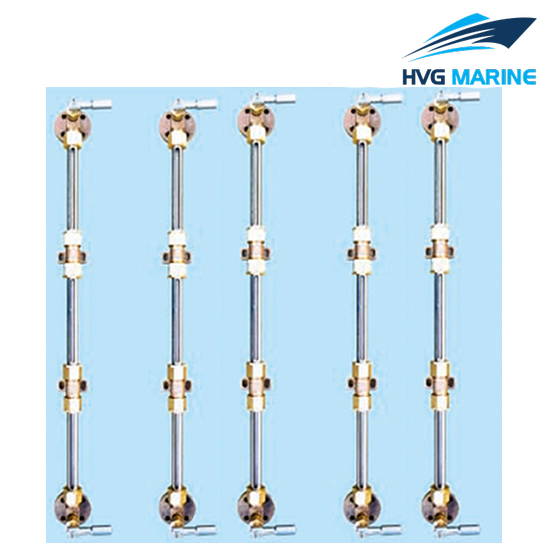

HVG MARINE VALVE 0060: Marine Tube Type Level Gauge
1. Brief Introduction: Marine tube type level gauge is called oil level gauge. It is widely used for all kinds of marine oil tanks and water tanks.
2. Parameter List:
| Type | Nominal Pressure PN(Mpa) | Nominal Diameter DN | Working Pressure (Mpa)/Medium Temp. ＜120 ℃ | Working Pressure/Medium Temp. ＞120-200℃ | Medium |
| A1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |
| B1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |
| C1 | 0.1 | 10 | 0.1 | 0.1 | Oil (Except heavy oil) |

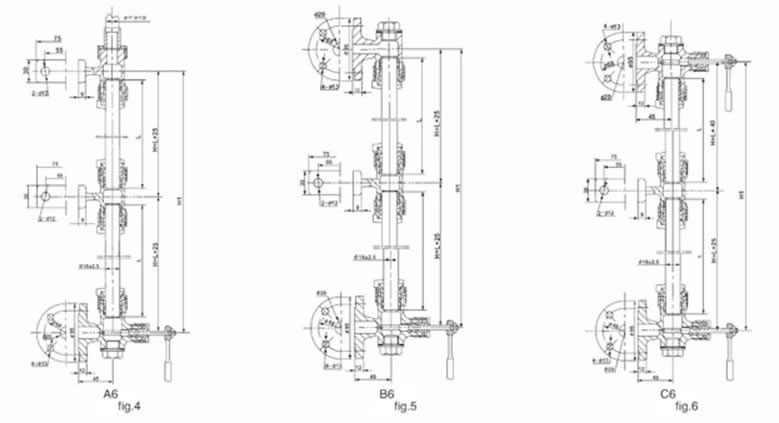

| A6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
| B6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
| C6 | 0.6 | 10 | 0.6 | 0.5 | Oil (Except heavy oil), Water |
