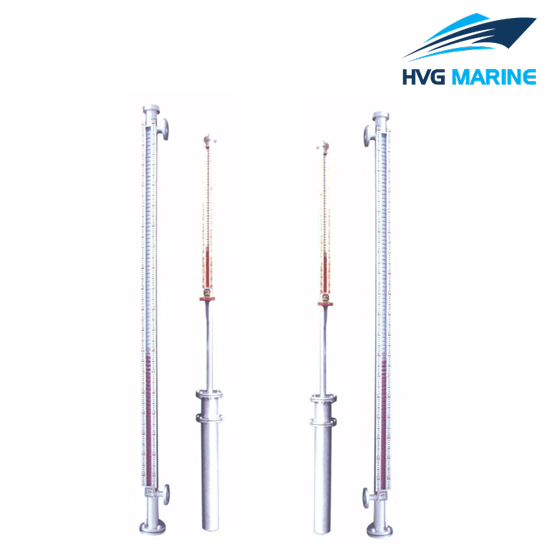

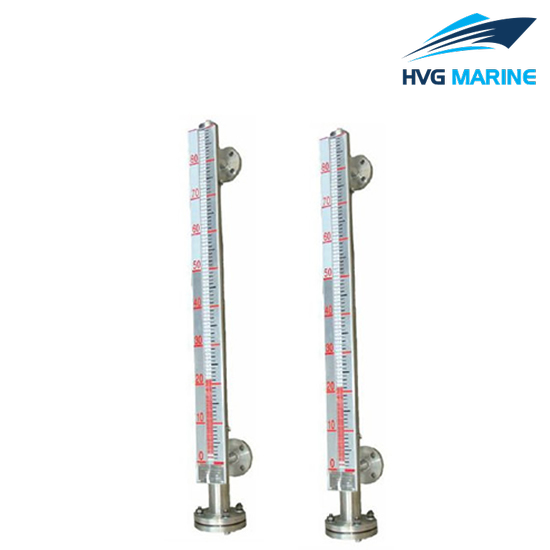

HVG MARINE VALVE 0056: Marine Magnetic Type Level Gauge
1. Brief Introduction: Marine magnetic type level gauge is widely used to measure and control level and show liquidity in the tank.
2. Application: Ship field.
3. Types: conventional type and jacket type.
| Conventional type | |
| Accuracy | ±8mm |
| Measuarement range | 500-8000mm |
| Medium | F.W.,F.O,L.O,D.O.,etc. |
| Specific gravity of medium | ≥0.6/cm^3 |
| Max.working pressrue | 0.2Mpa |
| Test pressure | 0.3Mpa |
| Temperature of working medium | -17℃~+80℃ |
| Connecting flange standard | 16020 GB2506-89 |
| Tolerance of nominal length | ≤1/1000 |
| Main material | 1Cr18Ni9Ti |
| Drain type | Drain ball valve or drain plug |
————————————————————————————————————————————————————————
| Jacket | |
| Accuracy | ±8mm |
| Measuarement range | 500-8000mm |
| Medium | F.W.,F.O,L.O,D.O.,etc. |
| Specific gravity of medium | ≥0.6/cm^3 |
| Max.working pressrue | 0.2Mpa |
| Test pressure | 0.3Mpa |
| Working pressure of steam | 0.7Mpa |
| Temperature of working medium | ≤300℃ |
| Connecting flange standard | 16020 GB2506-89 |
| Tolerance of nominal length | ≤1/1000 |
| Steam joint size | M16X1.5,G1/2″ |
| Main material | 1Cr18Ni9Ti |
| Drain type | Drain ball valve or drain plug |
