    HVG MARINE VALVE 0059

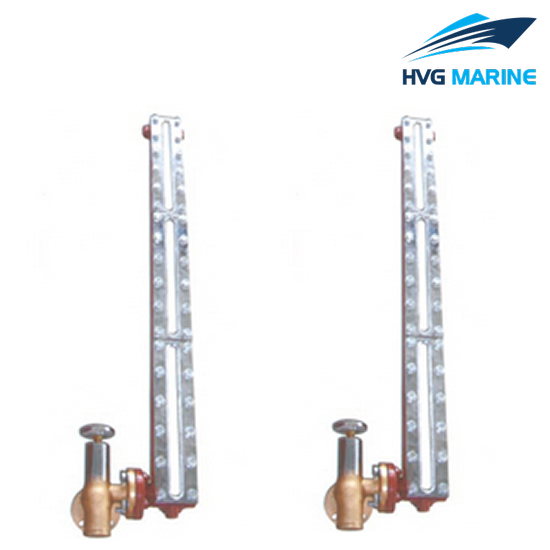

    HVG MARINE VALVE 0059: Marine Flat Type Level Gauge

    1. Brief Introduction: Marine flat type level gauge can be widely used in ship to measure and control level in the tank.

    2. Standard: GB/T3746-1996

    3. Technical Parameters:

    • Medium: Fresh Water, Oil etc.
    • Working Pressure: 0.2 Mpa
    • Test Pressure: 0.4 Mpa
    • Main Material: Body Cast Iron HT200
    • (Self-closing Valve Body:ZQSn10-2)

    Technical specification:

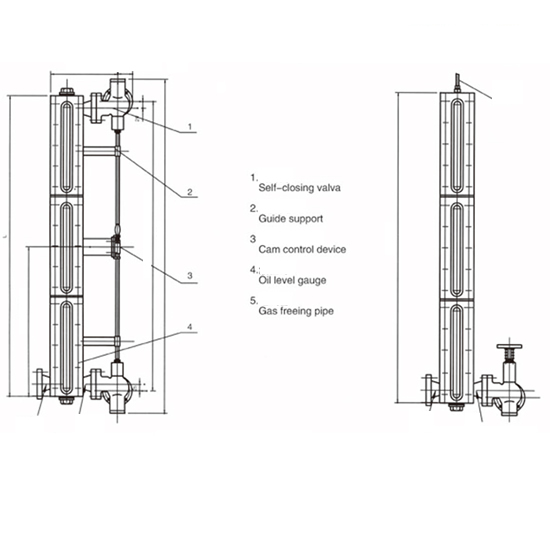

    • Parts of Marine Flat Type Level Gauge:
    No. Name
    1 Self-closing Valve
    2 Guide Support
    3 Cam Control Device
    4 Level Gauge
    5 Gas Freeing Pipe
