HVG MARINE STEEL 0060: Shipbuilding L-Section Steel

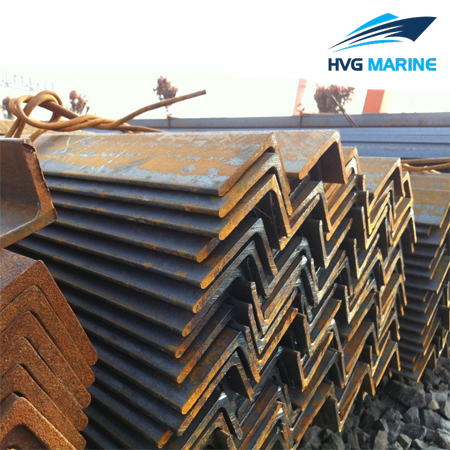

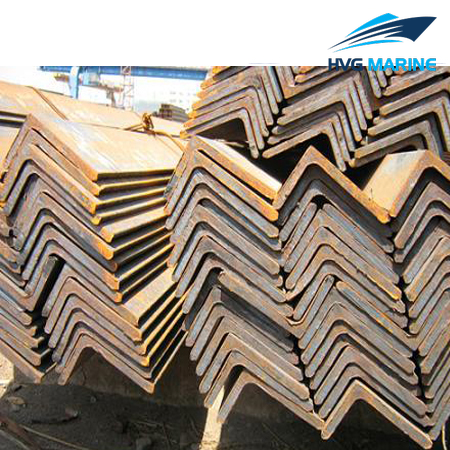

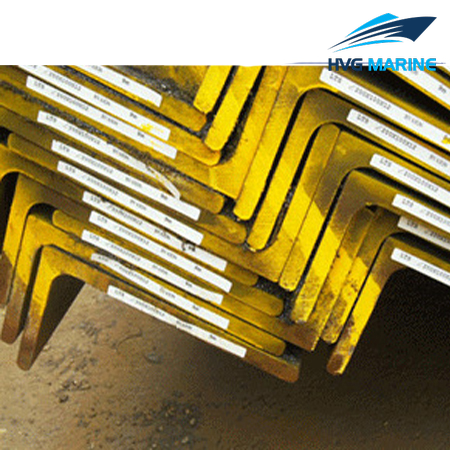

The shipbuilding L-section steel is a sort of steel angles used for shipbuilding. The shipbuilding L-section steel is suitable for both civil ships and warships. We are capable of supplying shipbuilding L-section steel made of CCS A, B, D, E, AH32, DH32, EH32, AH36, DH36, EH36, AH40, DH40, EH40 or other equivalent steel grades certified by leading classification societies. We provide you full selection of dimensions. If you have any specific requirements, we can customize products for you. The shipbuilding L-section steel is produced by top steel mills in accordance with GB/T 706-2008 or JIS G3192-2008. The L-section steel features excellent mechanical properties, good weldability, high reliablity and long service life. If you are interested in our shipbuilding L-section steel, welcome to contact us for more details. We will try our best to fulfill your requirements.

Reasons for Choosing HVG:

High quality products certified by leading classification societies, such as CCS, ABS, BV, LR, NK, KR…
A wide range of marine goods, satisfying your different requirements
Abundant stock
Enthusiastic service
Fast delivery
Rich experience in import and export trade

Technical specification:

Dimensions of Chinese Shipbuilding L-Section Steel
Dimensions of Japanese Shipbuilding L-Section Steel

Type	Sectional Dimension (mm)						Sectional Area (cm2)	Nominal Weight (kg/m)
Type	B	b	D	d	r	r1	Sectional Area (cm2)	Nominal Weight (kg/m)
L250×90×9×13	250	90	9	13	15	7.5	33.4	26.2
L250×90×10.5×15			10.5	15			38.5	30.3
L250×90×11.5×16			11.5	16			41.7	32.7
L300×100×10.5×15	300	100	10.5	15			45.3	35.6
L300×100×11.5×16	300	100	11.5	16			49.0	38.5
L350×120×10.5×16	350	120	10.5	16	20	10	54.9	43.1
L350×120×11.5×18	350	120	11.5	18			60.4	47.4
L400×120×11.5×23	400	120	11.5	23			71.6	56.2
L450×120×11.5×25	450	120	11.5	25			79.5	62.4
L500×120×12.5×33	500	120	12.5	33			98.6	77.4
L500×120×13.5×35	500	120	13.5	35			105.0	82.8

Type	Nominal Weight M (kg/m)	Sectional Area A (cm2)	Sectional Dimension
Type	Nominal Weight M (kg/m)	Sectional Area A (cm2)	H	B	t	T	R	r
L200×90×9×12	22.0	28.1	200	90	9	12	15	7.5
L225×90×9×12	23.8	30.3	225	90	9	12	15	7.5
L250×90×9×13	26.2	33.4	250	90	9	13	15	7.5
L250×90×10.5×15	30.3	38.5	250	90	10.5	15	15	7.5
L250×90×11.5×16	32.7	41.7	250	90	11.5	16	15	7.5
L275×100×10.5×14	32.8	41.8	275	100	10.5	14	15	7.5
L300×100×10.5×15	35.6	45.3	300	100	10.5	15	15	7.5
L300×100×11.5×16	38.5	49.0	300	100	11.5	16	15	7.5
L325×120×10.5×14	39.3	50.1	325	120	10.5	14	20	10
L325×120×11.5×15	42.6	54.3	325	120	11.5	15	20	10
L350×120×10.5×16	43.1	54.9	350	120	10.5	16	20	10
L350×120×11.5×18	47.4	60.4	350	120	11.5	18	20	10
L375×120×10.5×18	46.9	59.7	375	120	10.5	18	20	10
L375×120×11.5×20	51.4	65.4	375	120	11.5	20	20	10
L400×120×11.5×23	56.2	71.6	400	120	11.5	23	20	10
L425×120×11.5×23	59.3	75.5	425	120	11.5	24	20	10
L450×120×11.5×25	62.4	79.5	450	120	11.5	25	20	10
L475×120×11.5×28	67.2	85.6	475	120	11.5	28	20	10
L475×120×12.5×30	72.4	92.2	475	120	12.5	30	20	10
L500×120×12.5×33	77.4	98.6	500	120	12.5	33	20	10
L500×120×13.5×35	82.8	105	500	120	13.5	35	20	10
