HVG MARINE STEEL 0057: Japanese Standard Unequal Leg Angles

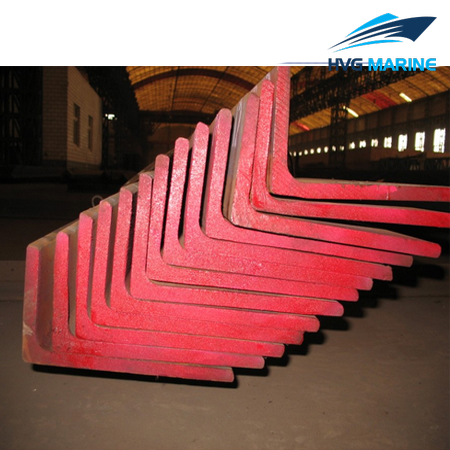

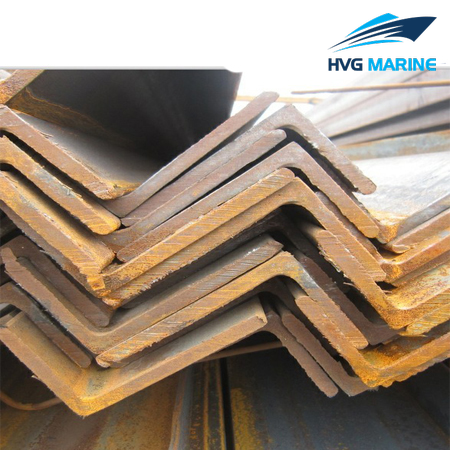

The unequal leg angles that we supply are made in accordance with JIS G3192-2008. They are described by both leg length (longer first) and wall thickness, eg. 30×20×3. the unequal leg angles are used for building and engineering structures, such as shipbuilding, bridges, industrial furnace, power transmission towers… The Japanese standard unequal leg angles are reliable, precision-made, standard-sized, and economical. We are able to provide a wide range of steel grades and dimensions. The regular length of angles is in the range of 3~19m. If you have any specific requirements about materials and dimensions, please contact us. In addition to Japanese standard unequal leg angles, we also provide Japanese standard equal leg angles, standard steel angles, European standard steel angles, American standard steel angles… If you want to know more details, welcome to contact us!

Advantages of HVG:

High quality products
A wide range of marine goods, satisfying your different requirements
Abundant stock
Enthusiastic service
Fast delivery
Rich experience in import and export trade

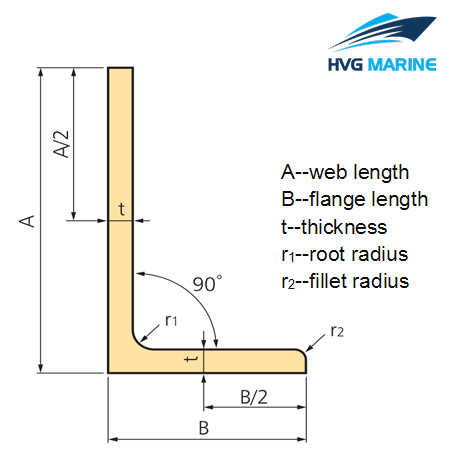

Profile of Japanese Standard Unequal Leg Angles

Technical specification:

Dimensions of Japanese Standard Unequal Leg Angles
Dimensions of JIS G3192-2008 Inverted Angles

Type	Unit Mass kg/m	Sectional Area cm2	Sectional Dimension
Type	Unit Mass kg/m	Sectional Area cm2	A mm	B mm	t mm	r1 mm
30×20×3	1.12	1.43	30	20	3	4
30×20×4	1.46	1.86	30	20	4	4
40×20×4	1.77	2.26	40	20	4	4
40×25×4	1.93	2.46	40	25	4	4
45×30×5	2.76	3.52	45	30	5	4
50×30×4	2.41	3.07	50	30	4	5
50×30×5	2.96	3.78	50	30	5	5
50×40×5	3.36	4.28	50	40	5	5
60×30×5	3.36	4.28	60	30	5	5
60×30×6	3.98	5.07	60	30	6	5
60×40×5	3.76	4.79	60	40	5	6
60×40×6	4.46	5.68	60	40	6	6
60×50×6	4.93	6.28	60	50	6	6
60×50×8	6.44	8.20	60	50	8	6
65×50×5	4.35	5.54	65	50	5	6
65×50×6	5.16	6.58	65	50	6	6
65×50×8	6.75	8.60	65	50	8	6
70×50×6	5.41	6.89	70	50	6	7
70×50×7	6.25	7.96	70	50	7	7
75×50×6	5.65	7.19	75	50	6	7
75×50×8	7.39	9.41	75	50	8	7
80×40×6	5.41	6.89	80	40	6	7
80×40×8	7.07	9.01	80	40	8	7
80×60×6	6.37	8.11	80	60	6	8
80×60×7	7.36	9.38	80	60	7	8
80×60×8	8.34	10.6	80	60	8	8
90×60×8	8.97	11.4	90	60	8	8
90×65×6	7.07	9.01	90	65	6	8
90×65×8	9.29	11.8	90	65	8	8
90×75×8	9.91	12.6	90	75	8	8
90×75×10	12.2	15.6	90	75	10	8
90×75×13	15.6	19.8	90	75	13	8
Note	On account of limited space, some dimensions are not described. Please contact us for more dimensions.
