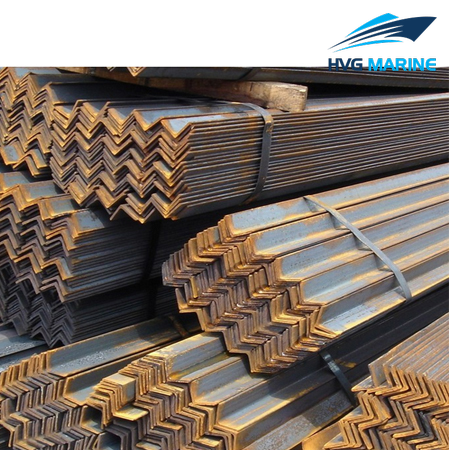

HVG MARINE STEEL 0056: Japanese Standard Equal Leg Angles

The equal leg angles are made of steel in accordance with JIS G3192-2008. They are described by both leg length and wall thickness, eg. 20×20×3. the equal leg angles are used for building and engineering structures, such as shipbuilding, bridges, industrial furnace, power transmission towers… The Japanese standard equal leg angles are reliable, precision-made, standard-sized, and economical. We are able to provide a wide range of steel grades and dimensions. The regular length of angles is in the range of 3~19m. If you have any specific requirements about materials and dimensions, please contact us. In addition to Japanese standard equal leg angles, we also provide Japanese standard unequal leg angles, standard steel angles, European standard steel angles, American standard steel angles… If you want to know more details, welcome to contact us!

Features of the Japanese Standard Equal Leg Angles

In line with JIS G3192-2008
High quality: The Japanese standard equal leg angles are made of high quality steel. They are produced by excellent steel mills which have strict quality management.
A wide range of materials and dimensions: The material of angles are structural steel, such as KA, KB, KD, KE, KA32,KD32…The dimension is from 20×20×3mm to 250×250×35mm.

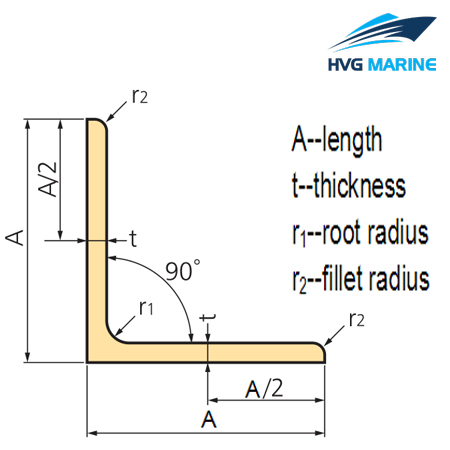

Profile of Japanese Standard Equal Leg Angles

Technical specification:

Dimensions of Japanese Standard Equal Leg Angles

Type	Unit Mass kg/m	Sectional Area cm2	Sectional Dimension
Type	Unit Mass kg/m	Sectional Area cm2	A mm	t mm	r1 mm
20×20×3	0.882	1.12	20	3	3.5
25×25×3	1.12	1.42	25	3	3.5
25×25×4	1.45	1.85	25	4	3.5
30×30×3	1.36	1.74	30	3	5
30×30×4	1.78	2.27	30	4	5
35×35×4	2.09	2.67	35	4	5
35×35×5	2.57	3.28	35	5	5
40×40×3	1.84	2.35	40	3	6
40×40×4	2.42	3.08	40	4	6
40×40×5	2.97	3.79	40	5	6
45×45×4	2.74	3.49	45	4	7
45×45×5	3.38	4.30	45	5	7
50×50×4	3.06	3.89	50	4	7
50×50×5	3.77	4.80	50	5	7
50×50×6	4.47	5.69	50	6	7
60×60×5	4.57	5.82	60	5	8
60×60×6	5.42	6.91	60	6	8
60×60×8	7.09	9.03	60	8	8
65×65×6	5.91	7.53	65	6	9
65×65×8	7.73	9.85	65	8	9
70×70×6	6.38	8.13	70	6	9
70×70×7	7.38	9.40	70	7	9
75×75×6	6.85	8.73	75	6	9
75×75×8	8.99	11.4	75	8	9
80×80×6	7.34	9.35	75	6	10
80×80×8	9.63	12.3	80	8	10
80×80×10	11.9	15.1	80	10	10
90×90×7	9.61	12.2	90	7	11
90×90×8	10.9	13.9	90	8	11
90×90×9	12.2	15.5	90	9	11
90×90×10	15.0	17.1	90	10	11
100×100×8	12.2	15.5	100	8	12
100×100×10	15.0	19.2	100	10	12
100×100×12	17.8	22.7	100	12	12
120×120×8	14.7	18.7	120	8	13
120×120×10	18.2	23.2	120	10	13
120×120×12	21.6	27.5	120	12	13
125×125×8	15.3	19.5	125	8	13
125×125×10	19.0	24.2	125	10	13
125×125×12	22.6	28.7	125	12	13
150×150×10	23.0	29.3	150	10	16
150×150×12	27.3	34.8	150	12	16
150×150×15	33.8	43.0	150	15	16
180×180×15	40.9	52.1	180	15	18
180×180×18	48.6	61.9	180	18	18
200×200×16	48.5	61.8	200	16	18
200×200×20	59.9	76.3	200	20	18
200×200×24	71.1	90.6	200	24	18
250×250×28	104	133	250	28	18
250×250×35	128	163	250	35	18
