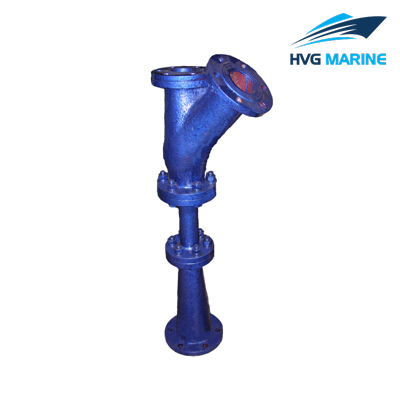

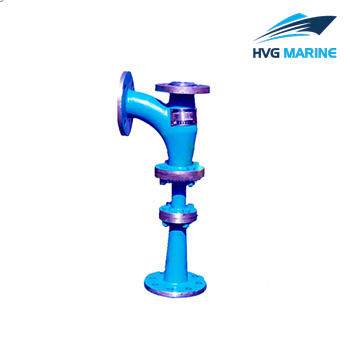

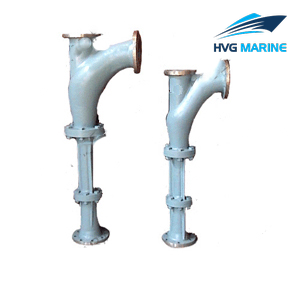

HVG MARINE PUMP 0029

HVG MARINE PUMP 0029: CP Marine Injection Pump

Applications:

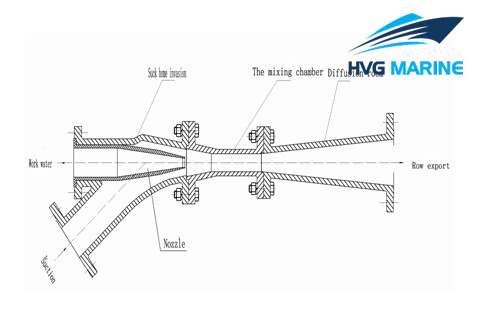

The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for ‘spray, suction, mixed, expansion of’ four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).

Model Explanation

for example CP(T)10-0.7
CP — Marine ejector pump
10 — Flow 10 m3/h
0.7 — Working water pressure 0.7Mpa

Technical specification:

Main Technical Parameter

Series Name	CP
Product Name	Marine Direct-connected Pump
Model	HS-CZB01
Feature	Compact structure, low noise, occupy small area
Capacity m³/h	5-200
Suction head m	2-7
Delivery head m	5-9
Water pressure Mpa	0.3/0.5/0.7
Application	Capable to delivery high viscosity liquid, and effumability liquid
Medium tempreture	-5℃-80℃
