HVG MARINE PUMP 0028

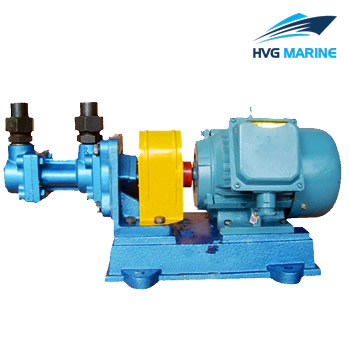

HVG MARINE PUMP 0028: 3GR Marine Screw Pump

Applications:

It applies to deliver clean and non-corrosive medium which has lubricating troperty at temperature beow ≤150°C,with the viscosity of 5-760cSt,The pump’s working pressure range from 0.6MPa to 2.5MPa and flow capacity range from 0.6-123m3/h.

Feature

1. Medium is delivered in axial direction continuously without agitation and pulsation.
2. Small vibration and low noise
3. High pressure and high efficiency
4. Simple structure,easy disassembly and assembly
5. Small volume and lighe weight
6. Slight wear and long life of the pump

Technical specification:

Main Technical Parameter
Performance Parameter

Series Name	3GR
Product Name	Three Screw Pump
Model	HS-3GR01
Feature	Simple structure, horizontal and vertical, AC/DC electric marine motor drive
Capacity	0.2-590 m3/h
Suction head m	2-7
Max. work pressure	100 bar
Application	Marine pump used in transmission, hydraulic engineering machinery industry and the heavy machinery industry, shipbuilding and marine engineering, oil and printing and dyeing industry, chemical, petrochemical and other industries
Medium tempreture	Max. 150℃

Model	Pressure (Mpa)	Capacity		Speed (r/min)	NPSH (m)	Efficiency (%)	Motor
Model	Pressure (Mpa)	m3/h	L/min	Speed (r/min)	NPSH (m)	Efficiency (%)	Power (kw)	Model
25×4-46	1.0	0.8	13	1450	4	62	0.75	Y802-4
	2.5	0.6	10	1450	4	60.6	1.5	Y90L-4
	1.0	2.0	33	2900	4.5	59.4	1.5	Y90S-2
	2.5	1.6	26	2900	4.5	69	3	Y100L-2
30×4-46	1.0	1.6	26	1450	4.5	63.5	1.1	Y90S-4
	2.5	1.2	20	1450	4.5	61	2.2	Y100L1-4
	1.0	3.6	60	2900	5	60	2.2	Y90L-2
	2.5	3.2	53	2900	5	69	4	Y112M-2
36×4-46	1.0	2.8	46	1450	4.5	66	2.2	Y100L1-4
	2.5	2.4	40	1450	4.5	66.5	4	Y112M-4
	1.0	6.5	108	2900	5	60.5	4	Y112M-2
	2.5	6	100	2900	5	72	7.5	Y132S2-2
42×4-46	1.0	4.8	80	1450	5	62	4	Y112M-4
	2.5	4.2	70	1450	5	73	5.5	Y132S1-4
	1.0	10.5	175	2900	5.5	61	5.5	Y132S1-2
	2.5	10	166	2900	5.5	72	15	Y160M2-2
45×4-46	1.0	6.3	106	1450	5	70	3	Y100L2-4
	2.5	5.9	99	1450	5	74	7.5	Y132M-4
	1.0	13.5	225	2900	5.5	60	7.5	Y132S2-2
	2.5	13	217	2900	5.5	75	15	Y160M2-2
60×4-46	1.0	15.5	255	1450	5	71.3	11	Y160M-4
	2.5	14.5	245	1450	5	74	15	Y160L-4
	1.0	32	533	2900	5.5	63	18.5	Y160L-2
	2.5	31.5	525	2900	5.5	77	37	Y200L2-2
70×2-46	0.6	24	400	1450	5	71	7.5	Y132M-4
	1.0	23.5	390			75	11	Y160M-4
	1.6	22.5	370			76	15	Y160L-4
70×4-46	1.0	24.5	408	1450	5	72.5	18.5	Y180M-4
70×4-46	2.5	23.5	392	1450	5	79	30	Y200L-4
80×2-46	0.6	36.5	608	1450	5	72	11	Y160M-4
	1.0	35	594			75.5	18.5	Y180M-4
	1.6	34.5	575			76.5	22	Y180L-4
80×4-46	1.0	37	617	1450	5.5	72	30	Y200L-4
80×4-46	2.5	35	590	1450	5.5	78.1	45	Y225M-4
100×2-46	0.6	72.5	1208	1450	5	73	22	Y180L-4
	1.0	71	1183			77	37	Y225S-4
	1.6	60.5	1158			79	45	Y225M-4
100×4-46	1.0	72.5	1208	1450	5.5	73	55	Y250M-4
100×4-46	2.5	70	1165	1450	5.5	78.5	75	Y280S-4
S100×3-27	0.6	72	1196	1450	6	62	22	Y180L-4
	1.6	70	1160			72	55	Y250M-4
	2.5	69	1145			74	75	Y280S-4
S120×3-27	0.8	123	2055	1450	6	74.5	55	Y250M-4
	1.5	120	2010			76	90	Y280M-4
	2.5	115	1920			78.5	132	Y315M-4
