HVG MARINE PUMP 0027

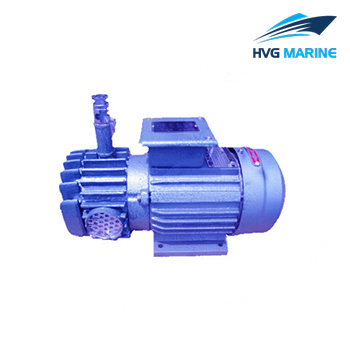

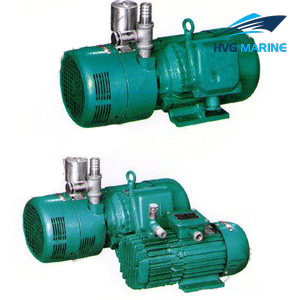

HVG MARINE PUMP 0027: CYBW Marine Air Pump

Applications:

CYBW Series marine air pump is the self lubricating Sliding-vane air pump,which has the features of smaill
size, lighe weight, energy-saving,and clean exhausted air with no oil poilution,etc. It can meet the requirement for marine uses.CYBW series marine air pump is designed specially as the auxiliary equipment for marine sanitary sewage disposal system, it is also applicable to the industries of printing machinery packing, blow molding, and light fittings etc.

Model Explanation

for example CYBW-25
C — Marine
Y — Air pump
B — Sliding-vane
W — Oil-less self-lubricating
25 — Airflow (m3/h)

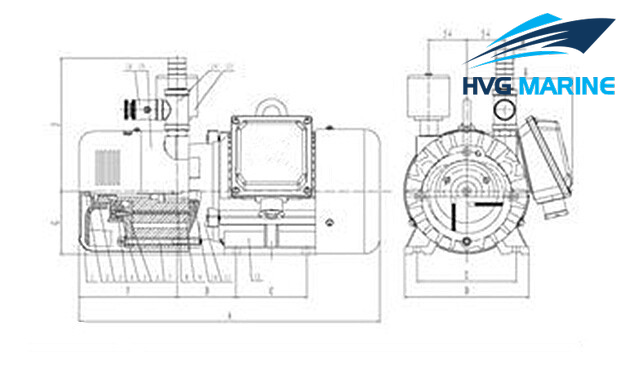

Structure

Technical specification:

Main Technical Parameter

Series Name	CYBW
Product Name	Marine Air Pump
Feature	small size, light weight, energy saving
Model	Capacity (m3/h)	Pressure (Mpa)	Motor power (kw)	Inlet pipe diameter (mm)	Outlet pipe diameter (mm)
CYBW-6	6	60	0.25	1400	16
CYBW-10	10	60	0.37	1400	16
CYBW-15	15	60	0.55	1400	20
CYBW-20	20	60	0.75	1400	20
CYBW-25	25	60	1.1	1400	27
CYBW-40	40	60	1.5	1400	27
Application	Applicable for marine tsanitary sewage disposal syatem, it is also applicable to the industries of printing machinery, packing, blow molding, and light fittings, etc.
