    HVG MARINE PROPULSION EQUIPMENT 0073

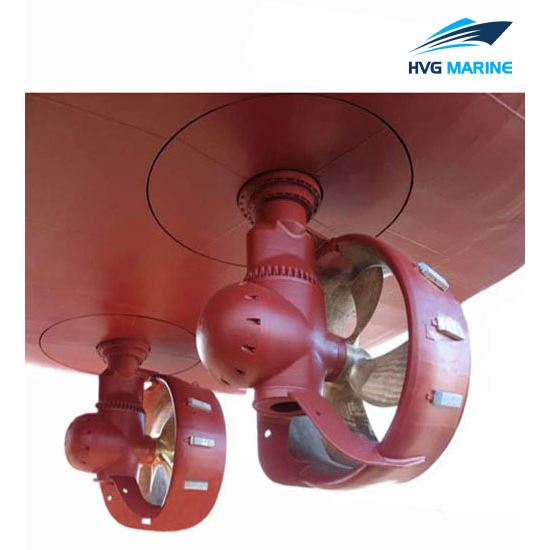

    HVG MARINE PROPULSION EQUIPMENT 0073: Rudder Propeller

    As a professional supplier of marine equipment, we can supply rudder propeller lines with fixed pitch or controllable pitch propellers according to customer’s needs. Arranged in Z-drive or L-drive, the rudder propeller transforms reliably the power of diesel engine, electric or hydraulic motor into best thrust and thus improves propulsion efficiency and maneuverability. Our rudder propellers are approved by ABS, CCS, BV, DNV, NK, KR, GL, etc. Any question about our products, please be free to contact us, we are very glad to serve you.

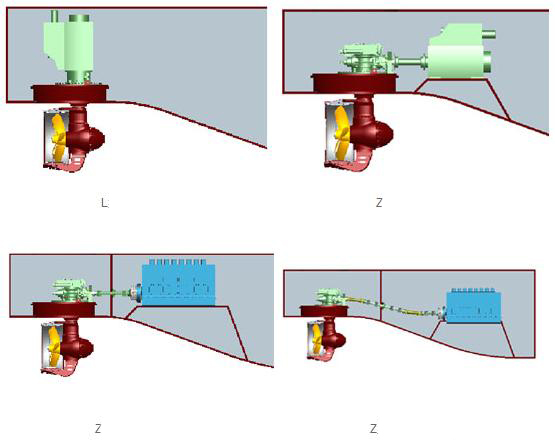

    Drive Types

    Technical specification:

    • Technique data:

    Model

    RP20

    RP42

    RP85

    RP168

    RP300

    RP330

    RP550

    RP14710

    RP1950

    Max. input power (KW/HP)

    45/61

    100/135

    210/285

    300/400

    480/650

    620/843

    920/1250

    1250/1700

    1650/2244

    Max. input torque (N.m)

    200

    420

    850

    1675

    2800

    3300

    5423

    14740

    19500

    Max. input speed (r/min)

    2300

    2500

    2350

    2000

    1800

    1800

    1800

    1000

    1000

    Reduction ratio

    I

    1.93

    2.5

    2.68

    3.46

    3.96

    4.04

    5.059

    3.257

    3.58

    I upper

    1.7

    1.64

    1.65

    1.53

    1.63

    1.53

    1.647

    1.286

    1.286

    I lower

    1.13

    1.52

    1.62

    2.26

    2.43

    2.64

    3.071

    2.533

    2.79

    Propeller diameter (mm)

    Max.

    500

    800

    950

    1150

    1550

    1500

    1800

    2100

    2300

    Min.

    700

    900

    1250

    PAL length (mm)

    Max.

    2250

    2800

    2800

    4250

    4750

    5000

    Min.

    350

    875

    980

    1400

    1750

    1700

    2600

    2800

    3000

    Weight (incl. propeller and oil at PAL min.) (kg)

    65

    190

    300

    1370

    2100

    2800

    5820

    11000

    16500

    Per 100mm extension kg·

    8

    9

    20.4

    40

    40

    45
