HVG MARINE PROPULSION EQUIPMENT 0071

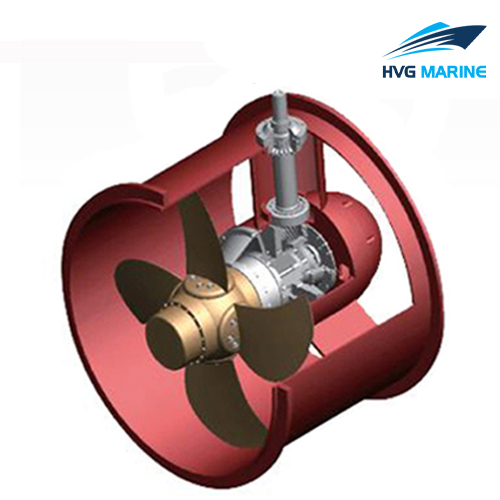

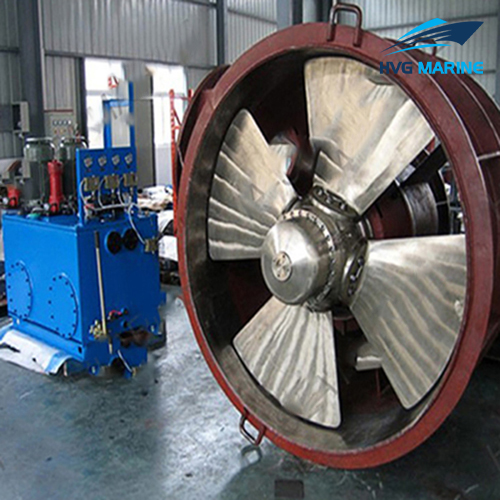

HVG MARINE PROPULSION EQUIPMENT 0071: CPP Bow Thruster

CPP bow thruster can be driven by electric-motor. Installed vertically or horizontally, it is designed based on the concept of reliability, durability, high efficiency and easy maintenance. The power range from 200 KW to 2000KW, propeller diameter range from 1100mm to 2800mm, and thrust force range from 16KN to 462KN. It is approved by ABS, BV, CCS, DNV, NK, KR, GL, etc. As a professional supplier of bow thruster, we hold the faith to manufacture the product with strict quality control and offer the first-class service. If you are interested in our products, please feel free to contact us, we will give you a quick reply.

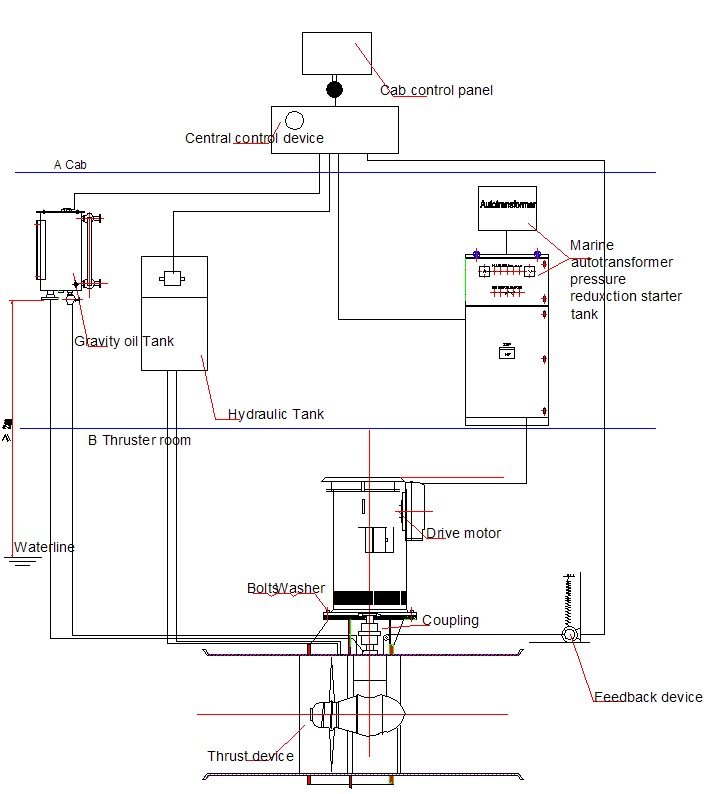

CPP Bow Thruster Installation System Drawing

Technical specification:

CPP bow thruster parameters

Model	CP-1000	CP-1100	CP-1300	CP-1650	CP-2000	CP-2400	CP-2800
Max input power	280	315/335	445/480	680/730	1050/900	1580/1720	2000/1910
Ratio	3.09	3.09	3.78	4.72	4.82	4.645	4.395
Max input speed	1450/1750	1450/1750	1450/1750	1450/1750	1450/1190	980/1190	980/880
Propeller speed	469.1/560	469/566	384/463	307/370	301/247	211/256	223/200
Propeller diameter	1000	1100	1300	1650	2000	2400	2800
Max thrust	43	46/47	66/67	97/105	155/144	239/242	298/297
Cylinder length	1045	1045	1190	1446	1680	1990	2280
Cylinder internal	1020	1120	1328	1680	2030	2430	2836
