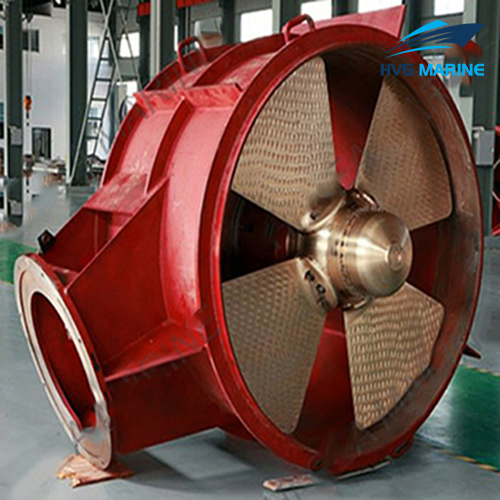

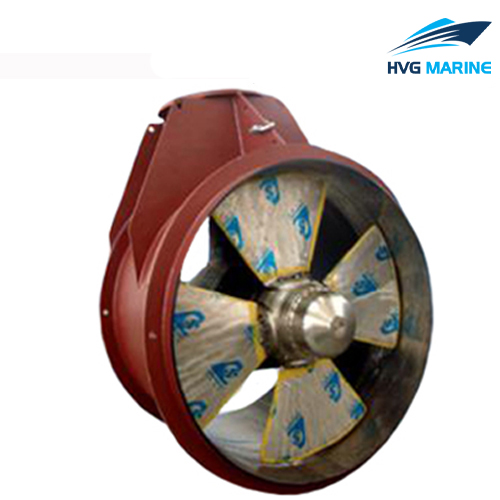

HVG MARINE PROPULSION EQUIPMENT 0072: Tugboat Bow Thruster

Tugboat works always with bow thruster to get better operation. It can be installed vertically or horizontally. It is designed based on the concept of reliability, durability, high efficiency and easy maintenance. Tugboat bow thruster is used for drag no self-propelled ship, boat etc. assisting big vessels out of port or pier. 160KW, 200KW, 250KW, 300KW, 350KW, 400KW, 450KW, 480KW are the often used power. 600KW, 800KW, 1000KW etc. are only for big vessels.

Features:

1. Easy installation and maintenance
2. Low noise emission
3. Reliability, durability and efficiency
4. Certificates: ABS, BV, CCS, DNV, NK, KR, GL, RINA, etc.
5. OEM service available

Technical specification:

Specification:

Model	FP-500	FP-600	FP-700	FP-800	FP-900	FP-1000	FP-1100	FP-1300	FP-1480
Max input power	63/72	90/105	135/165	180/190	200/235	280/290	315/340	445/480	560/620

Ratio	1.52	2.071	2.1	2.417	2.42	3.09	3.09	3.78	4.364

Max input torque	600	900	900	1400	1400	2100	2100	3000	3800

Max input speed	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750	1450/1750

Propeller speed	954/1151	700/845	700/845	600/724	600/724	469.1/566	469.1/566	384/463	332.3/401

Propeller diameter	500	600	700	800	900	1000	1100	1300	1480

Max thrust	10/11.2	14.5/16.3	20/24.8	29.5/30.5	31/35.4	43/45.2	49/53.8	67/73	88/95

Cylinder length	600	800	800	920	920	1045	1045	1190	1320

Cylinder internal	515	615	715	818	918	1020	1120	1328	1510
