HVG MARINE MOORING EQUIPMENT 0370

HVG MARINE MOORING EQUIPMENT 0370

HVG MARINE MOORING EQUIPMENT 0370

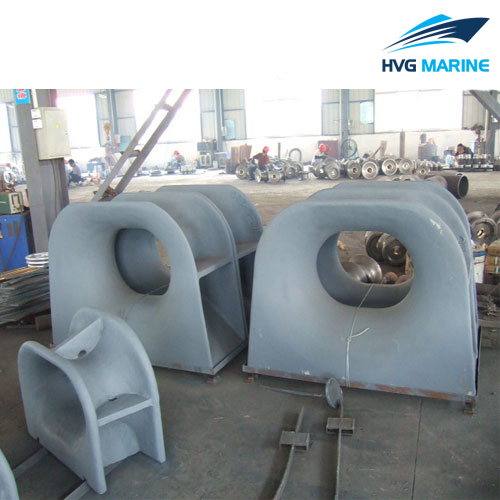

Can be called ‘bulwark chock’, is located in the bulwarks, with closed hole shaped fairlead limit position of the cable are derived. Its basic shape is circular, oval,

Do not know if you understand?

specific requirement summary explaining its technology introduction:

1: the mooring chock body material selection in accordance with GB 8162 204 seamless steel tube. Can also be specified in GB 712 A grade of steel plate is bend into.
2: Stainless steel clad plate selection in accordance with GB 4237 use 1Cr18Ni9Ti stainless steel plate .
3: the mooring chock body at intersecting line and the outer rim, welding surface clean and no crack, war page, skew, Cut straight to sharp edges.
4: mooring chock stainless steel clad plate shall be flat and body joint, the weld shall be no pores, cracks, burrs and lack of Depression.
5: mooring chock completion except stainless steel clad plate, should brush rustproof paint. After loading the goods on board according to the requirements of ship hull paint.

Technical specification:

Specifications

Nominal Size (mm)	Dimensions (mm)						Mass (kgs)

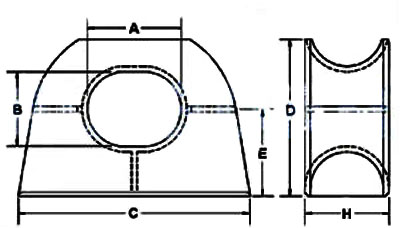

Nominal Size (mm)	A	B	C	D	E	H	Mass (kgs)
315×250	315	250	815	620	365	380	230
425×280	425	280	1075	785	450	500	378
500×400	500	400	1340	900	506	560	608
500×400(L)	500	400	1238	840	467	450	500
600×315	600	315	1360	865	507	560	598
600×450	600	450	1360	1000	575	560	820
*600×450(L)	600	450	1560	1200	675	760	1200
*800×600	800	600	1700	1160	640	580	1430
