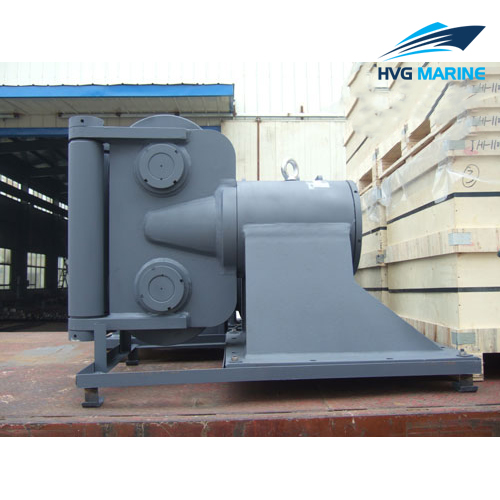

    HVG MARINE MOORING EQUIPMENT 0364: Deck Mounted Double Sheave Anchor Fairlead

    Swivel fairlead is also known as the Swivel Mooring chock. Swivel fairlead is a marine anchor fairlead Swivel pulley blocks. It is designed for the breaking strength of the line and 90 ° warp in the pulley and more or less 90 ° Swivel head rotation. And sealing grease lubricated tapered roller bearings, Swivel fairleads will harden rope groove and longer life. It is often used to guide the line, cable or table with minimal friction. Swivel fairlead anchor line and can be used in sailboat rigging. Ocean rotation anchor fairlead is mounted on the boat deck. Guide rope device can be used for berthing. Swivel fairleads also used in engineering boats, tugs, oil platforms, drilling rigs and other types of ship mooring and positioning.

    Technical specification:

    • Technical specification

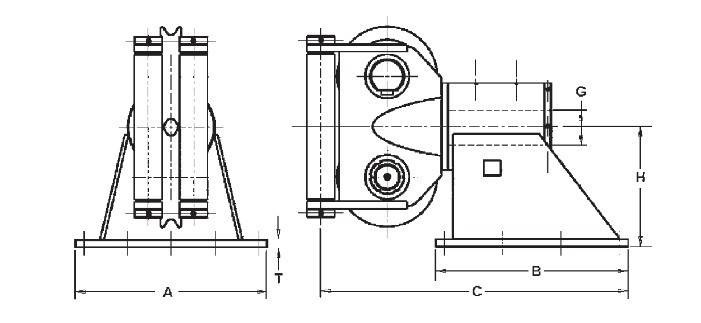

    Deck Mounted Double Sheave Anchor Fairlead
    Wire Rope diameter Sheave

    Dia.(mm)

    Dimensions(mm) Mass

    (kg)

    (mm) (mm) A B C T H G
    25 1 254 486 420 722 20 277 70 210
    32 1-1/4 305 570 492 839 20 342 104 355
    38 1-1/2 406 780 782 1266 30 489 143 850
    44 1-3/4 508 1064 914 1467 40 546 150 1520
    50 2 610 1219 1067 1763 40 648 186 2600
    64 2-1/2 762 1372 1219 2045 50 800 230 4000
    76 3 938 1800 1500 2634 50 960 300 7200
    82 3-1/4 1020 1800 2000 3186 50 1100 320 10800
