HVG MARINE MOORING EQUIPMENT 0359: SPEK Anchor

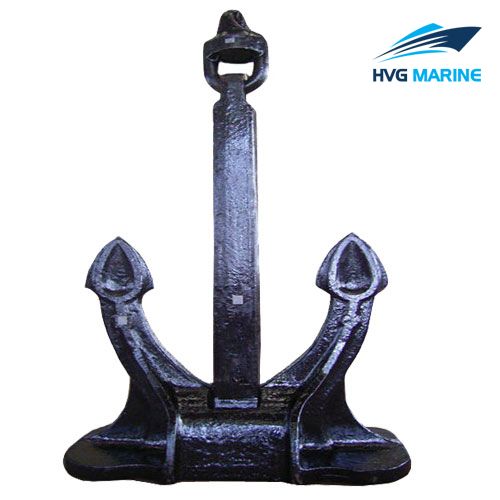

The Spek anchor is a stockless anchor type. The Spek anchor is one of the most common anchors and designed to fit anchor pockets on modern ships.
Product Detail

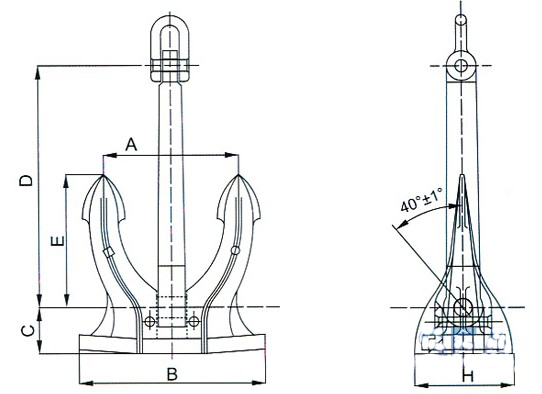

Drawing:
|
Nominal Weight |
Size(mm) |
|||||
|
A |
B |
C |
D |
E |
H |
|
|
80 |
339 |
468 |
108 |
611 |
336 |
222 |
|
105 |
371 |
512 |
120 |
669 |
336 |
242 |
|
135 |
371 |
512 |
149 |
669 |
368 |
254 |
|
180 |
445 |
613 |
142 |
800 |
440 |
290 |
|
240 |
445 |
613 |
182 |
800 |
440 |
304 |
|
300 |
527 |
727 |
168 |
949 |
522 |
344 |
|
360 |
527 |
727 |
190 |
949 |
522 |
358 |
|
420 |
590 |
813 |
188 |
1062 |
584 |
385 |
|
480 |
590 |
813 |
211 |
1062 |
584 |
395 |
|
570 |
652 |
900 |
208 |
1175 |
647 |
428 |
|
660 |
653 |
900 |
236 |
1175 |
647 |
438 |
|
780 |
725 |
1000 |
231 |
1305 |
718 |
473 |
|
900 |
725 |
1000 |
264 |
1215 |
718 |
485 |
|
1020 |
793 |
1093 |
252 |
1428 |
785 |
518 |
|
1140 |
793 |
1093 |
277 |
1428 |
785 |
530 |
|
1290 |
858 |
1183 |
273 |
1544 |
850 |
561 |
|
1440 |
858 |
1183 |
299 |
1544 |
850 |
573 |
|
1590 |
920 |
1268 |
293 |
1655 |
911 |
604 |
|
1740 |
920 |
1268 |
315 |
1655 |
911 |
611 |
|
1920 |
980 |
1350 |
312 |
1761 |
970 |
640 |
|
2100 |
980 |
1350 |
337 |
1761 |
970 |
650 |
|
2280 |
1038 |
1430 |
331 |
1866 |
1027 |
678 |
|
2460 |
1038 |
1430 |
355 |
1866 |
1027 |
688 |
|
2640 |
1090 |
1500 |
347 |
1959 |
1079 |
712 |
|
2850 |
1190 |
1500 |
380 |
1950 |
1079 |
722 |
|
3060 |
1144 |
1578 |
365 |
2058 |
1133 |
748 |
|
3300 |
1144 |
1578 |
387 |
2058 |
1133 |
760 |
|
3540 |
1202 |
1656 |
383 |
2159 |
1189 |
785 |
|
3780 |
1202 |
1656 |
405 |
2159 |
1189 |
787 |
|
4050 |
1257 |
1732 |
400 |
2258 |
1244 |
821 |
|
4320 |
1257 |
1732 |
422 |
2258 |
1244 |
831 |
|
4590 |
1257 |
1732 |
444 |
2258 |
1244 |
841 |
|
4890 |
1338 |
1846 |
426 |
2405 |
1325 |
874 |
|
5250 |
1338 |
1846 |
450 |
2405 |
1325 |
888 |
|
5610 |
1432 |
1974 |
431 |
2405 |
1418 |
936 |
|
6000 |
1432 |
1974 |
457 |
2577 |
1418 |
936 |
|
6450 |
1432 |
1974 |
483 |
2577 |
1418 |
950 |
|
6900 |
1533 |
2112 |
462 |
2757 |
1518 |
1001 |
|
7350 |
1533 |
2112 |
488 |
2757 |
1518 |
1001 |
|
7800 |
1533 |
2112 |
514 |
2757 |
1518 |
1015 |
|
8300 |
1621 |
2234 |
489 |
296 |
1605 |
1059 |
|
8700 |
1621 |
2234 |
517 |
2916 |
1605 |
1059 |
|
9300 |
1621 |
2234 |
545 |
2916 |
1605 |
1074 |
|
9900 |
1726 |
2380 |
520 |
3015 |
1709 |
1128 |
|
10500 |
1726 |
2380 |
550 |
3105 |
1709 |
1128 |
|
11100 |
1726 |
2380 |
580 |
3105 |
1709 |
1138 |
|
11700 |
1819 |
2507 |
554 |
3273 |
1701 |
1188 |
|
12300 |
1819 |
2507 |
580 |
3273 |
1701 |
1188 |
|
12900 |
1819 |
2507 |
607 |
3273 |
1701 |
1200 |
|
13500 |
1904 |
2624 |
577 |
3425 |
1885 |
1243 |
|
14100 |
1904 |
2624 |
607 |
3425 |
1885 |
1243 |
|
14700 |
1904 |
2624 |
650 |
3425 |
1885 |
1243 |
|
15400 |
1904 |
2782 |
657 |
3425 |
1885 |
1263 |
|
16100 |
2018 |
2782 |
612 |
3632 |
1998 |
1318 |
|
16900 |
2018 |
2782 |
638 |
3632 |
1998 |
1318 |
|
17800 |
2018 |
2782 |
683 |
3632 |
1998 |
1318 |
|
18800 |
2018 |
2782 |
699 |
3632 |
1998 |
1343 |
|
20000 |
2170 |
2990 |
652 |
3905 |
2148 |
1416 |
