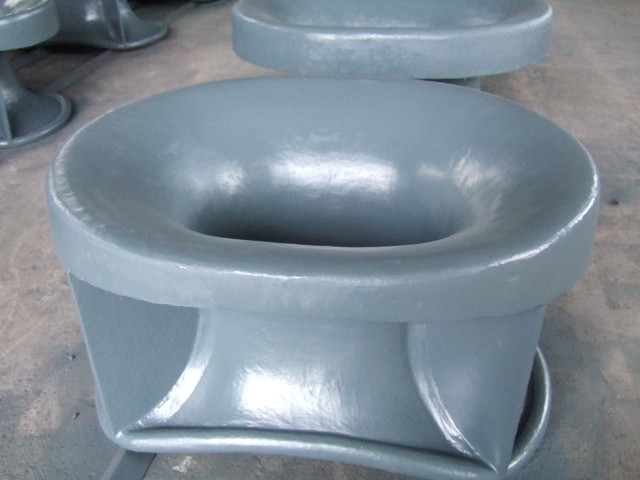

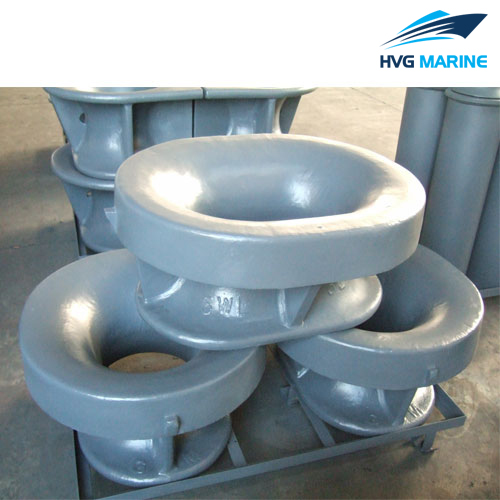

HVG MARINE MOORING EQUIPMENT 0367: Technical information mooring chock

Can be called ‘bulwark chock’, is located in the bulwarks, with closed hole shaped fairlead limit position of the cable are derived. Its basic shape is circular, oval

The mooring chock is a very important mooring equipment. In the process of mooring ship, it bears huge loads. Usually the ship bollards, mooring chock for the whole ship mooring use. The general bow and stern ofship blocks the bollard fairlead, quantity large. Of intermediate section above without or bollards, fairlead rarely.Fairlead is oblique chock more insurance, because it is closed, the cable will not jump out .

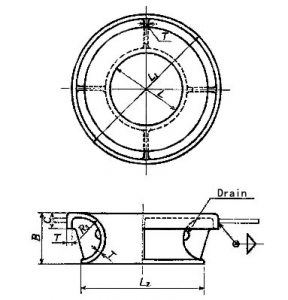

Technical specification:

Specifications

Type (mm)	L	L1	L2	B	C	R3	T	Weight (kg)	Manila Rope (Dia.)	Wire Rope (Dia.)
150	150	318	288	144	42	72	12	17.5	45	16(6×12)
200	200	380	346	155	44	78	12	23.5	50	18(6×12)
250	250	450	414	169	52	85	15	37.5	60	20(6×12)
300	300	510	470	179	55	90	15	45.5	70	22.4(6×12)
