HVG MARINE MOORING EQUIPMENT 0303

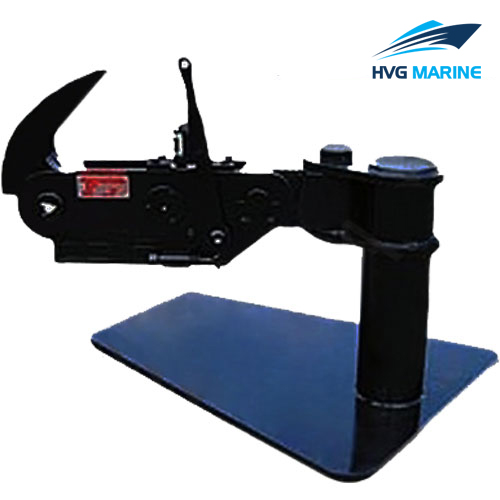

HVG MARINE MOORING EQUIPMENT 0303: Hydraulic Release Harbour Towing Hook

Harbour towing hook is used to enable the ships to be towed safely though ships work under severe working conditions. It can release the towing line whether it is under slack or full safe working load. Harbor towing hook can be released manually or through remote control from the wheelhouse by pulling the release wire or by pushing a button. The remote control systems can be supplied with either a hydraulic or pneumatic release mechanism.

Hydraulic release harbour towing hook is released by the hydraulic release mechanism. Comparing to the traditional bollard, it greatly reduces the labor intensity and improve the labor efficiency, safety and reliability. This release hook can help the mooring ropes released from the its hook once the vessel has to leave the dock for emergency. It ensures both the dock and vessel’s safety and avoids large losses.

Specification:

1. Type: Harbour Type
2. Control System: Hydraulic Release Operation
3. Usage: Ship Mooring and Towing
4. Applications: Container Berth, General Cargo Berth, Offshore Dock,Ferry Dock etc.
5. Work Principle: Leverage
6. Material: Steel
7. Safe Working Load: 150kN to 1000kN
8. Test Load: 300kN to 1500kN
9. Release Load: 150kN to 1000kN
10. Weight: 52kg to 526kg
11. Movement: Side Movement
12. High Quality with Competitive Price
13. Certificate: CCS,ABS, BV, DNV, LR, NK etc.
14. Custom Service for Special Requirement

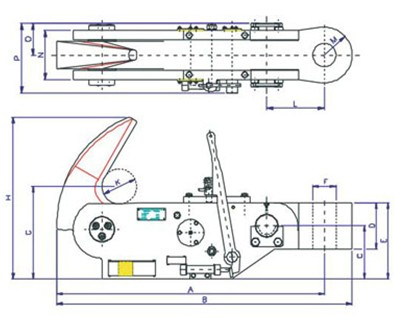

Drawing:

Technical specification:

Technical specification

S.W.T	T.L	R.L	W.t	A	B	C	D	E	F	G	H	K	L	M	N	N	P
150	300	150	52	521	571	100	100	150	40	174	316	65	110	50	100	100	150
300	600	300	143	788	868	160	130	225	60	268	461	96	180	80	125	125	207
450	900	450	289	1023	1123	200	160	260	80	350	616	130	210	100	148	148	224
562	1125	562	352	1073	1183	200	290	290	90	350	616	130	250	110	170	170	245
1000	1500	1000	526	1159	1279	230	330	330	100	400	700	150	250	120	212	212	333
