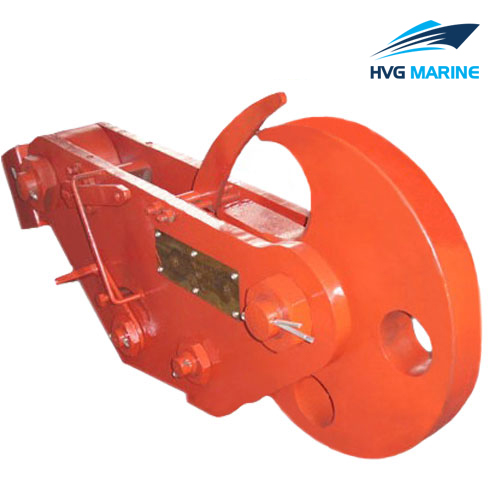

HVG MARINE MOORING EQUIPMENT 0301: Manual Release Disc Towing Hook

Disc towing hook, used for emergency towing and port towing, has different types and sizes to meet customer’s special requirements. It can be released manually or through remote control by pneumatic air cylinder. Manual release disc towing hook could release the hook by pulling the brake manually and tie a rope to the top of the brake and then pulling back.

We supply all types of marine towing hook. If you’re interested in our products, please feel free to contact us. We’ll give you a quick and satisfactory reply.

Specification:

1. Type: Disc Type
2. Control System: Manual Release Operation
3. Safe Working Load: 70kN to 1000kN
4. Test Load: 140kN to 1500kN
5. Release Load: 70kN to 1000kN
6. Weight: 79kg to 1282kg
7. Movement: Side Movement
8. Material: Steel
9. Color: Red, Black, Blue,Grey etc. on Request
10. Warranty Time:12Months
11. Certificate: CCS, ABS, BV, DNV,GL,LR etc.
12. Special Design for Specific Requirements

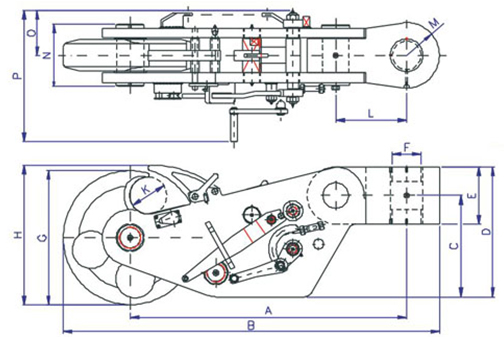

Drawing:

Technical specification:

Technical specification

Unit:mm

Type	S.W.L.	T.L.	R.L.	Wt.	A	B	C	D	E	F	G	H	K	L	M	N	O	P
DCX5/7	70	140	70	79	512	712	185	235	100	45	280	291	65	125	60	112	97	260
DCX8/15	150	300	150	174	670	905	255	325	140	60	340	377	100	250	65	144	106	284
DCX18/25	250	500	250	414	923	1238	355	445	180	80	470	491	130	200	81	186	124	427
DCX30/45	450	900	450	534	973	1323	355	455	200	100	470	190	130	200	115	218	158	462
DCX50/65	650	1300	650	918	1173	1598	454	464	220	110	600	608	162	250	125	256	173	487
DCX70/100	1000	1500	1000	1282	1068	1750	492	632	280	135	650	668	176	290	135	288	182	530
