    HVG MARINE MOORING EQUIPMENT 0297

    HVG MARINE MOORING EQUIPMENT 0297:  Single Roller Cleat Fairlead

    • 1. Adopt CB*58-83 fairlead roller;
    • 2. Following the production standard CB*436-2000;
    • 3. Nominal roller diameters 150mm to 400mm;
    • 4. Applicable to steel wire, hemp wire, synthetic carbon fiber rope;
    • 5. Rollers can be casted iron or steel;
    • 6. The height of base determined by customers;
    • 7. Red,gray, black etc. for customers’ choice;
    • 8. No any defects to influence the quality and performance;
    • 9. Get approvals of quality inspection center such as CCS, ABS;
    • 10. Production according to customers’ special design.

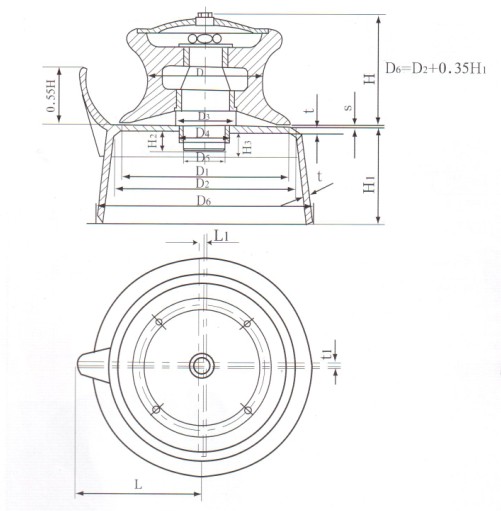

    Drawing:

    Technical specification:

    • Technical specification
    D(mm) Max Cable Diameter (mm) Dimensions (mm) Roller Weight (kg) Basement Weight (kg)H1=100
    Cable Tensile Strength 1550N/mm2
    Hemp Rope
    Synthetic Fiber Rope
    		 D1 D2 D3 D4 D5 L H H1 H2 H3 S t t1 HT ZG
    6×24 6×30 6×37
    150 17 17.5 15 45 32 240 270 90 71 60 245 211 AsRequired 40 75 3 12 8 32.1 33.8 129
    200 22.5 21.5 19.5 55 40 310 340 115 95 80 285 251 50 85 3 14 10 64.6 68 178
    250 24 26 24 65 45 380 410 140 107 90 323 298 60 100 4 14 10 108 114 207
    300 30 32.5 28 70 50 440 470 160 127 110 335 321 60 100 4 16 14 159 168 265
    350 37.5 39 34.5 75 55 500 530 180 144 125 390 346 65 100 4 18 14 235 248 332
    400 41 39 39 80 65 560 590 200 161 140 420 371 70 100 5 20 16 336 355 401
