    HVG MARINE MOORING EQUIPMENT 0296

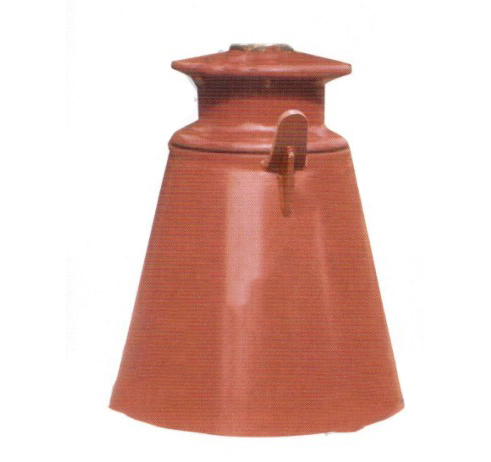

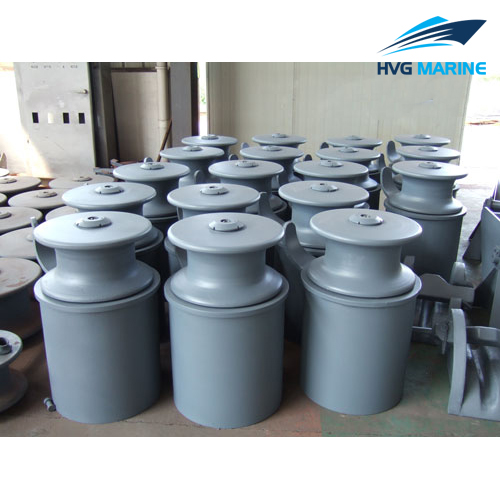

    HVG MARINE MOORING EQUIPMENT 0296: Cleat Fairlead with Single Roller

    • 1. Adopt GB/T10105-88 marine roller;
    • 2. Produced strictly following the standard CB*436-2000
    • 3. Nominal roller diameter 150mm to 450mm;
    • 4. Applicable to three types of ropes: steel wire, hemp wire, synthetic carbon fiber rope;
    • 5. Made of high quality steel;
    • 6. Clean and smooth surface without cracks or other defects;
    • 7. Anti-rust and abrasion resistant;
    • 8. Get approved by CCS, ABS etc.;
    • Produced according to customers’ special design;

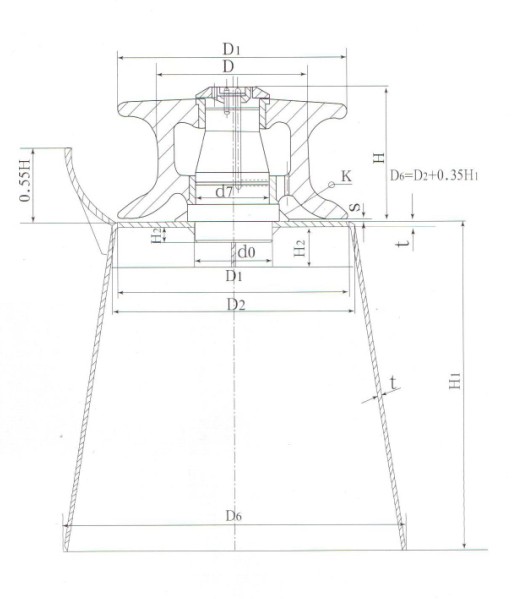

    Drawing:

    Technical specification:

    • Technical specification
    D(mm) Max Cable Diameter (mm) Dimensions (mm) Roller Weight (kg) Basement Weight (kg)H1=100
    Cable Tensile Strength 1550N/mm2
    Hemp Rope


    Synthetic Fiber Rope



    		 D0 D1 D2 D7 H H1 H2 H3 S t K
    6×24 6×30 6×37
    150 17 17.5 15 45 32 90 240 270 79 154 AsRequired 40 75 5 12 9 24.8 129
    200 22.5 21.5 19.5 55 40 115 310 340 99 186 50 85 5 14 10 49.3 178
    250 24 26 24 65 45 135 380 410 119 230 60 100 6 14 10 92 207
    300 30 32.5 28 70 50 155 440 470 129 255 60 100 7 16 12 127 265
    350 37.5 39 34.5 75 55 175 500 530 149 271 65 100 7 18 13 168 332
    400 41 39 39 85 65 185 560 590 159 307 70 100 7 20 14 252.5 401
    450 44.5 – 43 – 80 210 630 670 179 316 80 120 7 20 14 310 452
