    HVG MARINE MOORING EQUIPMENT 0198

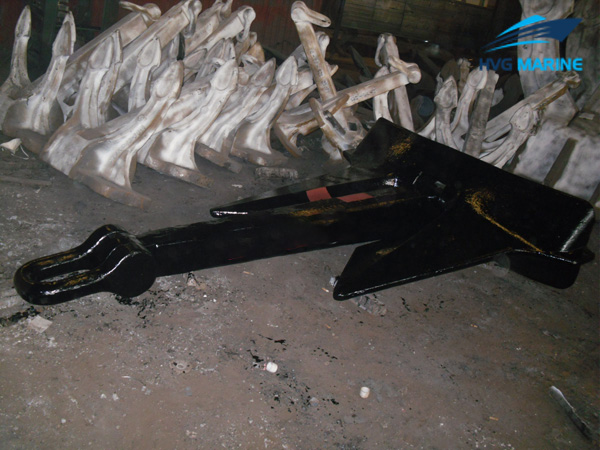

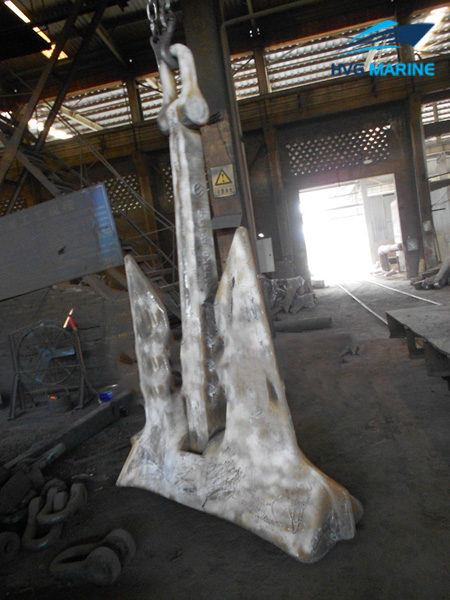

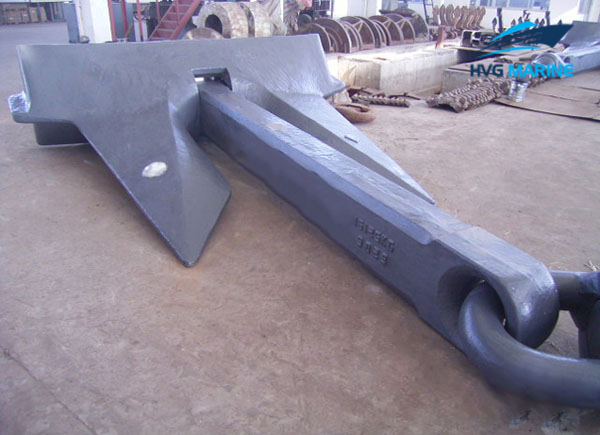

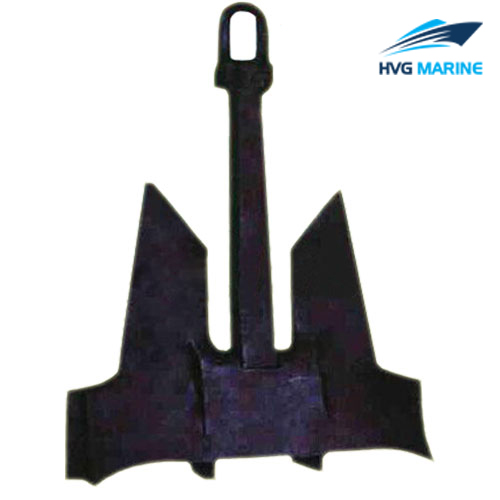

    HVG MARINE MOORING EQUIPMENT 0198: Marine AC-14 Anchor

    The HVG MARINE MOORING EQUIPMENT 0198 anchor is one of the most versatile of the high holding power anchor.
    It is used both in shipping and in the aquaculture industry.
    The HVG MARINE MOORING EQUIPMENT 0198 is available in a self colored finish or in a galvanized finish.
    HVG MARINE MOORING EQUIPMENT 0198 anchors are stockless anchors and are available as a standard anchor or as the fully balanced anchor type.

    Details:
    1. Material: ZG230-450H, 20
    2. Weight: 75kg-30000kg
    3. Certificate: CCS, ABS, LR, GL, NK, RS, DNV, KR, BV, RINA
    4. Delivery: 30-60 days or earlier after confirm order
    5. Packing details: In bulk

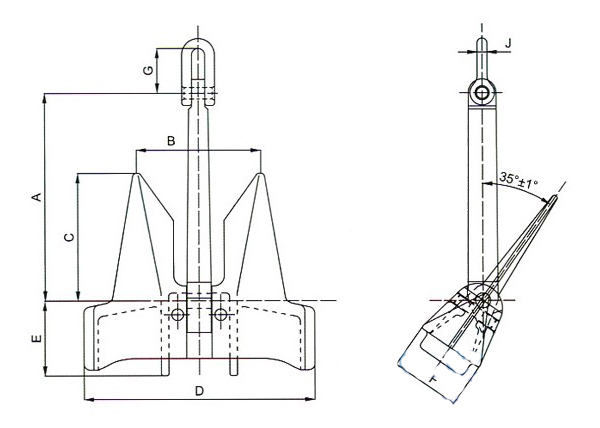

    HVG MARINE MOORING EQUIPMENT 0198 Anchor Drawing



    Technical specification:

    • Specification:

    NOMINAL

    WEIGHT(KG)

    SIZE(mm)

    A

    B

    C

    D

    E

    F

    G

    J

    75

    550

    326

    350

    606

    188

    185

    115

    24

    495

    1025

    610

    650

    1135

    350

    348

    235

    50

    1080

    1350

    805

    855

    1495

    461

    455

    280

    62

    2100

    1686

    1005

    1070

    1865

    575

    570

    380

    82

    3040

    1896

    1130

    1204

    2100

    646

    640

    410

    90

    4840

    2225

    1330

    1410

    2465

    760

    755

    480

    110

    5175

    2275

    1358

    1443

    2520

    777

    770

    480

    110

    6000

    2390

    1426

    1515

    2646

    816

    810

    500

    110

    7875

    2610

    1558

    1655

    2890

    891

    884

    600

    130

    8775

    2707

    1614

    1715

    2996

    924

    916

    630

    135

    9675

    2805

    1674

    1778

    3104

    957

    948

    640

    140

    10125

    2850

    1700

    1806

    3152

    972

    960

    640

    140

    11025

    2930

    1750

    1859

    3247

    1001

    990

    660

    145

    12075

    3010

    1800

    1906

    3343

    1027

    1020

    700

    155

    13350

    3132

    1870

    1986

    3470

    1069

    1060

    700

    155

    14100

    3178

    1896

    2015

    3520

    1084

    1076

    730

    160

    15400

    3272

    1954

    2075

    3626

    1117

    1108

    770

    170

    16900

    3350

    2000

    2126

    3720

    1144

    1144

    770

    170

    17800

    3440

    2050

    2180

    3806

    1173

    1162

    800

    180

    18800

    3500

    2088

    2220

    3875

    1193

    1185

    800

    180

    20000

    3573

    2132

    2265

    3956

    1220

    1210

    820

    185

    25000

    4100

    2437

    2600

    4577

    1399

    1375

    880

    200

    30000

    4358

    2888

    2765

    4663

    1484

    1380

    940

    210
