HVG MARINE MOORING EQUIPMENT 0195

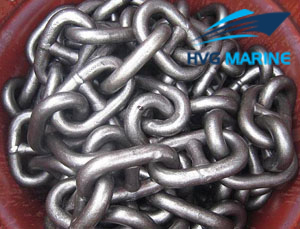

HVG MARINE MOORING EQUIPMENT 0195: Anchor Chain

We supply all kinds of marine anchor chains and offshore mooring chains with CCS, LR, ABS, BV, GL, KR, NK, DNV, RINA, and IRS marine certificate.
Marine anchor chain has 2 garde: Grade 2 and Grade 3; Offshore mooring chain has 3 grades: RQ3/NVR3, RQ3S/NVR3S, RQ4/NVR4. We can provide 12.5mm to 162mm marine anchor chains and offshore mooring chains. All marine anchor chain can be test by UT & MT detection and proof and loading test etc..

Product Detail

1. Chain Diameter: 17.5m (12.5mm to 162mm)

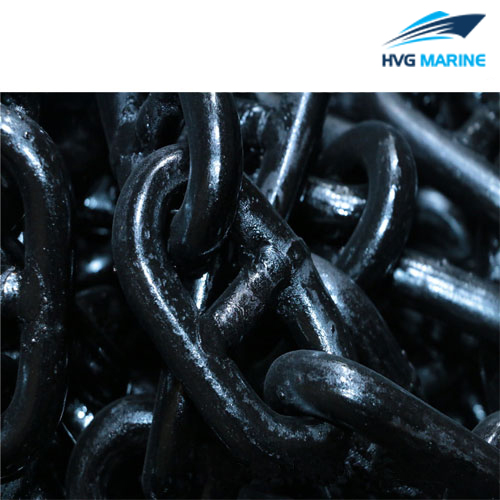

2. Grade: U2/U3
3. Material: Steel
4. Surface treatment: hot galvanized, black painted.
5. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
6. Guarantee period is one year.

Technical specification:

Testing Load of Stud Link Anchor Chain

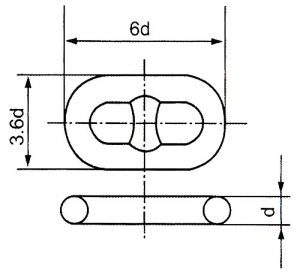

Diamter	CHAIN LINK SIZE		AM2		AM3		APPROX.
	CHAIN LINK SIZE		U2 STUD LINK CHAIN		U3 STUD LINK CHAIN		WEIGHT
	OUTSIDE	OUTSIDE	PROOF	BREAKING	PROOF	BREAKING	27.5M
	LENGTH	WIDTH	LOAD	LOAD	LOAD	LOAD	27.5M
MM	MM	MM	KN	KN	KN	KN	KG
12.5	75	45	66	92	92	132	98
14	84	50.4	82	116	116	165	119
16	96	57.6	107	150	150	216	156
17.5	105	63	127	179	179	256	186
19	114	68.4	150	211	211	301	230
20.5	123	73.8	175	244	244	349	260
22	132	79.2	200	280	280	401	300
24	144	86.4	237	332	332	476	370
26	156	93.6	278	389	389	556	431
28	168	100.8	321	449	449	642	496
30	180	108	368	514	514	735	564
32	192	115.2	417	583	583	833	635
34	204	122.4	468	655	655	937	712
36	216	129.6	523	732	732	1050	800
38	228	136.8	581	812	812	1160	887
40	240	144	640	896	896	1280	1032
42	252	151.2	703	981	981	1400	1084
44	264	158.4	769	1080	1080	1540	1197
46	276	165.6	837	1170	1170	1680	1310
48	288	172.8	908	1270	1270	1810	1438
50	300	180	981	1370	1370	1960	1546
52	312	187.2	1060	1480	1480	2110	1661
54	324	194.4	1140	1590	1590	2270	1791
56	336	201.6	1220	1710	1710	2430	1926
58	348	208.8	1290	1810	1810	2600	2086
60	360	216	1380	1940	1940	2770	2249
62	372	223.2	1470	2060	2060	2940	2361
64	384	230.4	1560	2190	2190	3130	2516
66	396	237.6	1660	2310	2310	3300	2676
68	408	244.8	1750	2450	2450	3500	2885
70	420	252	1840	2580	2580	3690	3010
