HVG MARINE MOORING EQUIPMENT 0118

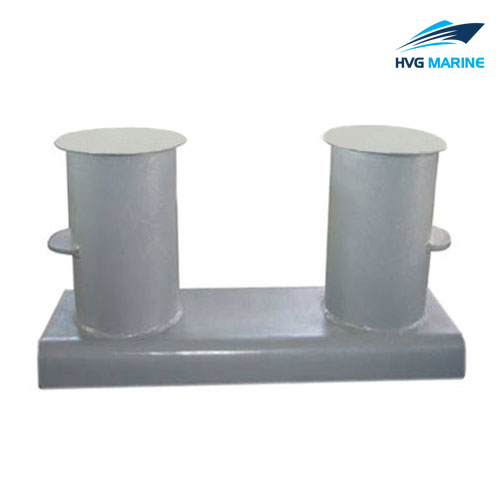

HVG MARINE MOORING EQUIPMENT 0118: Inserted Bollard

HVG MARINE MOORING EQUIPMENT 0118 bollards have five different types bollard. Every bollard we produced are of high quality and get the approval of quality inspection center. If you’re interested in our bollards, please feel free to contact us.

Features of HVG MARINE MOORING EQUIPMENT 0118 Inserted Bollard

1. Inserted bollard;
2. Standrard: HVG MARINE MOORING EQUIPMENT 0118
3. Nominal Diameter: 160mm to 500mm;
4. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
5. Wire rope standard: GB1102-74, tensile strength is 1520N/mm²;
6.1 year warranty;
7. Durable, long lifetime;
8. Certificate: CCS,ABS etc.
9. Can be customized

Drawing of GB T554-96 Type B Inserted Bollard

Technical specification:

Technical specification

Unit:mm

Nominal Dia.	Max. Breaking Load KN	Max. Dia. Of Applicable Rope					D	D1	A	tmin	t1min	t2	h	H
		Steel Rope			Hemp Rope	Synthetic Carbon Fiber Rope								H
		6×24	6×30	6×37	Hemp Rope	Synthetic Carbon Fiber Rope								Deck without Plywood	Deck with Plywood
160	49	9.3	11.0	8.7	90	20	168	210	400	10	6	9	8	250	310
200	78	13.0	13.0	13.0	110	110	219	170	500	10	8	9	8	300	360
250	118	15.0	17.5	15.0	130	130	273	335	630	11	10	9	8	380	440
315	196	20.5	21.5	19.5	170	170	325	390	800	15	12	9	10	480	540
355	255	24.0	24.0	21.5	200	200	351	420	890	17	13	12	10	530	590
400	314	26.0	28.0	24.0	235	235	402	480	1000	18	14	12	10	600	660
450	382	30.0	30.0	28.0	250	250	450	545	1130	19	16	12	10	680	740
500	451	32.0	32.5	30.0	280	280	500	500	1250	20	18	12	12	750	810
