    HVG MARINE MOORING EQUIPMENT 0116

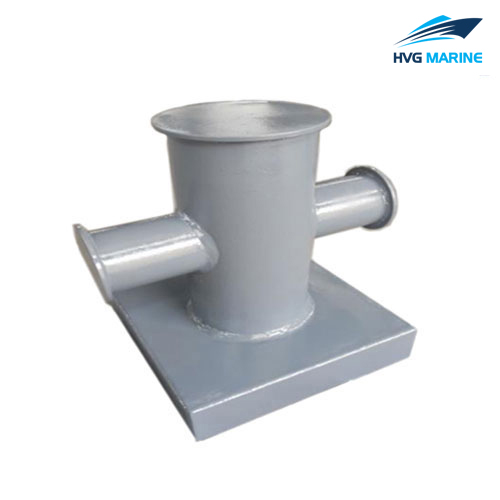

    HVG MARINE MOORING EQUIPMENT 0116 Type D Single Cross Bollard

    It has three nominal size: 50mm, 75mm, 100mm.  For more information, please feel free to contact us.

    Features of HVG MARINE MOORING EQUIPMENT 0116 Single Cross Bollard

    • 1. Type: single cross bollard
    • 2. Standard: GB/T 554-96;
    • 3. Nominal Diameter: 50mm,75mm,100mm;
    • 4. Weight: 2.8kg, 8.0kg, 15kg;
    • 5. Bolts Quantity: 4;
    • 6. Material: cast steel, cast iron, ductile iron;
    • 7. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
    • 8. Certificate: CCS,ABS, BV, LR etc.

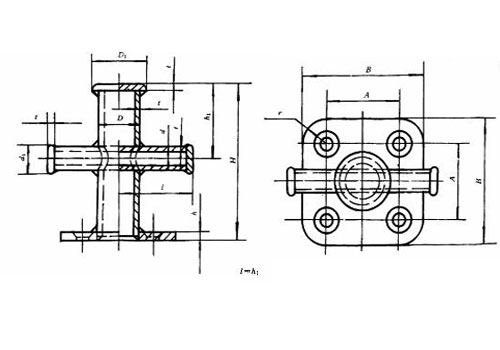

    Drawing of GB T554-96 Type D Single Cross Bollard

    Technical specification:

    • Technical specification

    Unit:mm

    Nominal Dia.

    Wire Rope Max. Dia.

    Hemp Rope Max. Dia.

    Synthetic Carbon Fiber Rope Max. Dia.

    D

    D1

    B

    H

    h

    h1

    t

    d

    d1

    r

    A

    Screws

    Weight(kg)

    Screw Thread Dia.

    Quantity(piece)

    50

    8.7

    75

    16

    50

    65

    135

    190

    8

    85

    6

    25

    35

    25

    85

    M16

    4

    2.8

    75

    11.5

    90

    20

    75

    75

    185

    290

    12

    135

    7

    42

    52

    35

    115

    M22

    4

    8.0

    100

    13.5

    100

    24

    100

    100

    235

    350

    18

    160

    7

    50

    65

    40

    155

    M27

    4

    15
