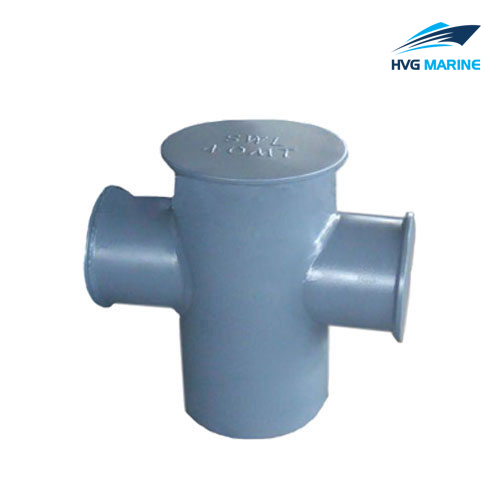

HVG MARINE MOORING EQUIPMENT 0109: Ship Cross Bitt

GB 10106-88 ships cross bitts, have two types: type A and type B. Type A ship cross bitts is directly welded on the deck. While type B is welded on the deck liner. Both two types are strictly produced in line with industrial standard. All our bollards get the approval of International Classification Society. If you’re interested in our products, please feel free to contact us for more information.

Features of Ships Cross Bitts

1. Type: Ship’s cross bitts;
2. Nominal Diameters: 150 to 350mm;
3. Three applicable rope types: steel rope, synthetic fiber rope, hemp rope;
4. Industrial Standard: GB 10106-88
5. Material Type: seamless steel/carbon steel;
6. Polished welds, no cracks, warp, skew or any defects that influence function;
7. Get quality certificate by technical inspection department;
8. Surface: bitumen paint;
9. 1 year warranty;
10. Can be customized.

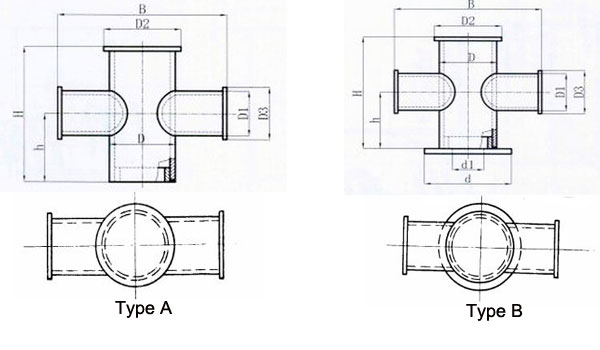

Drawing of Ship Cross Bitt

Technical specification:

Technical specification

Unit:mm

Nominal Dia.	Max. Breaking Load of Applicable Wire KN(tf)	Max. Dia. Of Applicable Rope			H	B	h	D	D1	D2	D3	d	Weight(kg)
		Steel Rope	Synthetic Carbon Fiber Rope	Hemp Rope
150	117(12)	13.0	30	44	480	460	280	168	114	206	158	240	A	31
													B	33
200	225(26)	19.5	45	64	560	520	320	219	168	260	210	280	A	62
													B	66
250	382(39)	26.0	56	80	640	610	360	273	219	310	260	340	A	98
													B	105
300	549(56)	30.0	70	104	680	660	380	325	273	360	310	400	A	143
													B	153
350	686(70)	34.5	77	120	720	720	420	351	273	400	314	440	A	192
													B	204
