HVG MARINE MOORING EQUIPMENT 0107

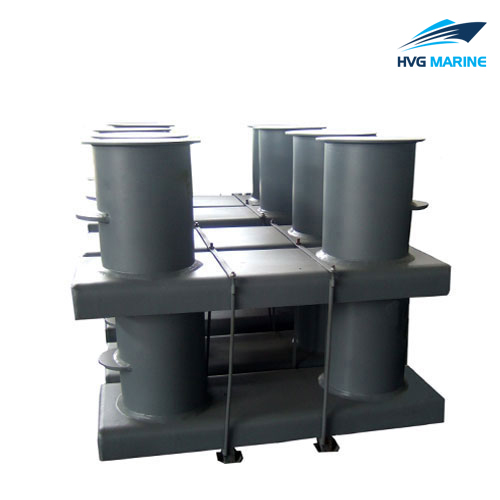

HVG MARINE MOORING EQUIPMENT 0107: Bollard

Our marine bollards are strictly produced complying with the industrial standard. JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference. For more information, please feel free to contact us.

Features of HVG MARINE MOORING EQUIPMENT 0107 Bollard

1. Double bitt bollard;
2. Bollard Standard: JIS F2001-1990;
3. Steel material;
4. Finish: Epoxy coating;
5. Nominal Diameters: 100 to 800mm;
6. Weight: 18.9 to 3071 kg;
7. 1 year warranty;
8. Certificate: CCS,ABS,BV etc.;
9. Can be customized

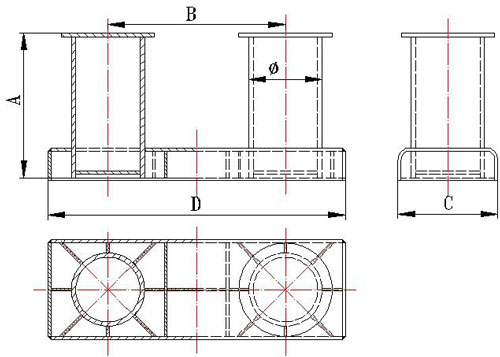

Drawing of Bollard

Technical specification:

Technical specification

Nominal Dia.	Weight(kg)	Size(mm)
Nominal Dia.	Weight(kg)	A	B	C	D	Φ
100	18.9	196	250	165	445	114.3
125	29.4	246	315	195	540	139.8
160	44.7	316	400	225	670	165.2
200	79.5	378	500	290	860	216.3
250	139	470	630	360	1065	267.4
315	261	597	800	430	1300	318.5
355	361	663	890	480	1475	355.6
400	502	749	1000	550	1630	406.4
450	685	841	1130	620	1840	457.2
500	911	928	1250	690	2040	508.0
560	1208	1025	1380	750	2240	558.8
630	1601	1152	1570	820	2510	609.6
710	2252	1294	1750	960	2840	711.2
800	3071	1480	2000	1100	3240	812.8
