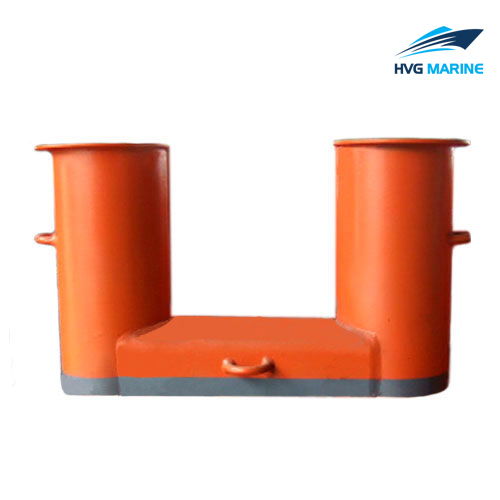

HVG MARINE MOORING EQUIPMENT 0117 : Simple Bollard

If you have special requirements about the bollards, we can do it as well. For more information, please email us.

Features of HVG MARINE MOORING EQUIPMENT 0117 Simple Bollard

• 1. Double bitts bollard;
• 2. Standard: GB/T 554-96;
• 3. Nominal Diameter: 50mm, 75mm,100mm,125mm,150mm;
• 4. Weight: 4.5 to 49.0kg;
• 5. Applicable ropes: wire rope, hemp rope, synthetic fiber rope;
• 6. Material type: cast steel, cast iron, ductile iron;
• 7. Surface: polished,galvanized
• 8. Get approval of CCS, ABS etc.;
• 9. Can be customized.

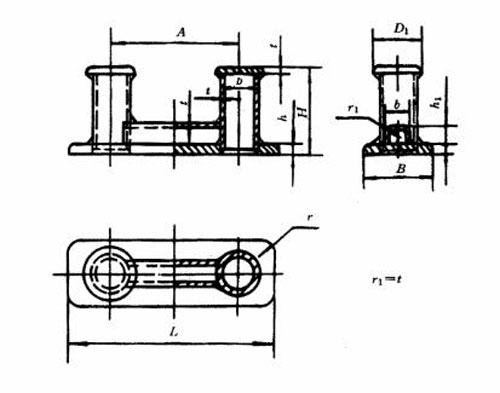

Drawing of GB T554-96 Type C Simple Bollard
