HVG MARINE MOORING EQUIPMENT 0070

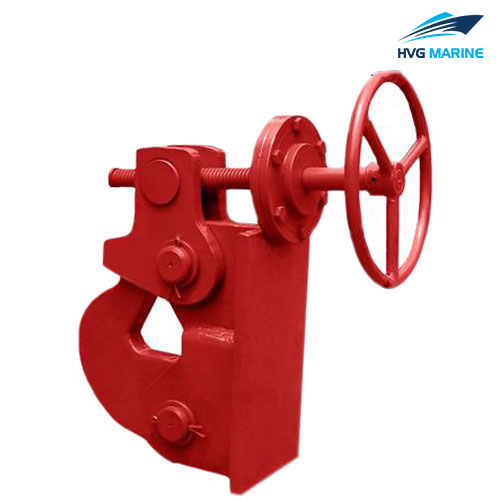

HVG MARINE MOORING EQUIPMENT 0070: Watertight Swivel Type Anchor Releaser CB 887-77

CB*887-77 anchor releaser’s main feature is its watertight function. When a ship needs emergent anchor releasing, anchor releaser provides convenience to release the anchor chains and then guarantee the ship’s safety.

We supply all types of anchor releaser,such as CB*289-91 screw type anchor releaser, CB531-66 simple machine for releasing anchor, JIS F2025-1992 plug type anchor releaser,German standard anchor releaser. For more information, please feel free to contact us.

Features of Watertight Swivel Type Anchor Releaser

1. Nominal Chain Diameter: 28mm to 57mm;
2. Material: Steel;
3. Smooth Surface without Burrs, Cracks, Sharp Corners etc.;
4. Lubricated Friction Surface and Anti-rust Painting;
5. Flexible Rotation, Reliable Operation;
6. Watertight Function;
7. High Quality, Get Qualified Certificate;
8. Supply CCS, ABS, BV, DNV,LR etc. Certificate;
9. Can be Customized

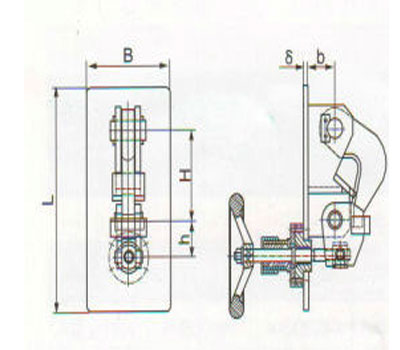

Drawing of Watertight Swivel Type Anchor Releaser CB 887-77

Technical specification:

Technical specification

Anchor Chain Dia.(mm)	H	h	b	L	B	&	D	d	l	Weight(kg)
28	170	65	60	500	200	10	T24×5	18	45	22.73
31	180	70	70	510	210	10	T26×5	18	45	27.74
34	180	70	70	510	210	10	T26×5	18	45	28.1
43	200	80	80	550	250	12	T26×5	18	45	48.67
49	220	85	80	560	260	14	T32×6	18	45	63.63
53	235	90	90	575	275	14	T32×6	18	45	78.30
57	235	90	90	575	275	14	T32×6	18	45	79.47
