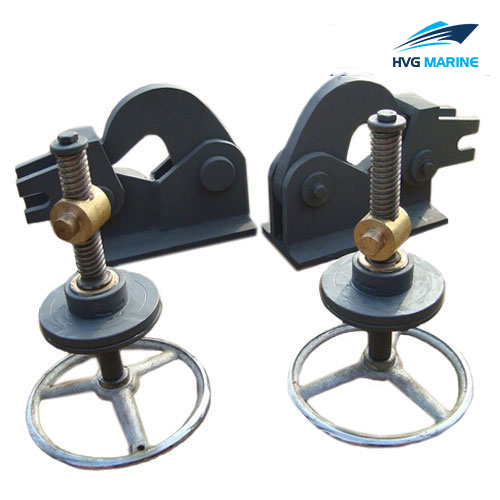

HVG MARINE MOORING EQUIPMENT 0067: Screw Type Anchor Releaser CB*289-81

CB*289-91 screw type anchor releaser is commonly applicable to various ships. It is installed on the anchor chains storage bulkhead and used for fixing the end link of anchor chain. CB*289-91 anchor releaser can be controlled at a far distance. It is made of high grade steel. For more information, please feel free to contact us.

Features of CB*289-81 Anchor Releaser:

1. Screw Type Anchor Chain Releaser
2. Standard: CB*289-91;
3. Nominal Chain Diameter: 25mm to 122mm;
4. Material: High Grade Steel;
5. Flexible Rotation, Watertight Anchor Releaser
6. Safe and Reliable Operation, Remote Control
7. Certificate: CCS, ABS, BV, LR, DNV etc.
8. Can be customized

Technical specification:

Technical specification

Anchor Chain Diameter(mm)	B	D	L	L1	L3	H	H2	Weight(kg)
25~34	120	200	228	90	140	260	80	20
37~43	140	250	243	90	145	300	96	36
46~53	180	320	327	125	197	380	120	78
57~67	220	400	390	140	225	480	140	104
72~82	235	400	425	150	250	510	148	149
87~102	250	400	457	160	272	560	150	183
107~122	270	400	485	175	285	630	170
