HVG MARINE MOORING EQUIPMENT 0066

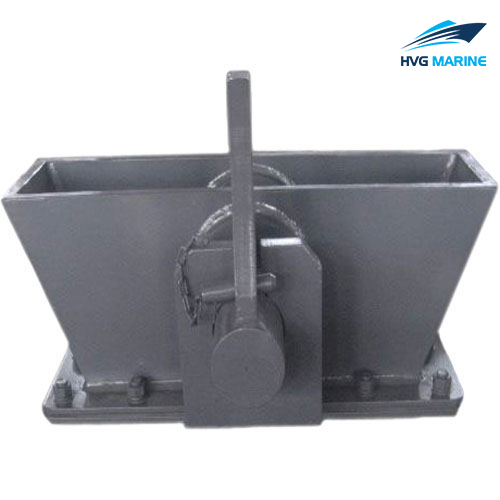

HVG MARINE MOORING EQUIPMENT 0066: Plug Type Anchor Releaser JIS F2025-1992

Plug type anchor releaser is applicable to anchor chain diameter 52mm to 120mm and commonly used on large and medium ships. Plug type anchor releaser is designed according to Japanese Standard JIS F2025-1976. It is installed on the anchor chains storage bulkhead and convenient and easy to operate when ship is in emergent circumstance. Plug type anchor releaser is applicable to Grade 2 anchor chains. For more detail information, please feel free to contact us.

Features of JIS F2025 Cable Clenches

1. Type: Plug Type Cable Clenches Anchor Releaser
2. Standard: JIS F2025-1992;
3. Material: Steel;
4. Used for Securing the Anchor Chains in the Chain Locker;
5. Applicable Chain Diameter: 52mm to 120mm;
6. Bolts No. Determined by Anchor Chain Diameter
7. Supply CCS, ABS, BV, LR, DNV Certificate etc.
8. Can be Customized

Plug Type Anchor Releaser JIS F2025-1992

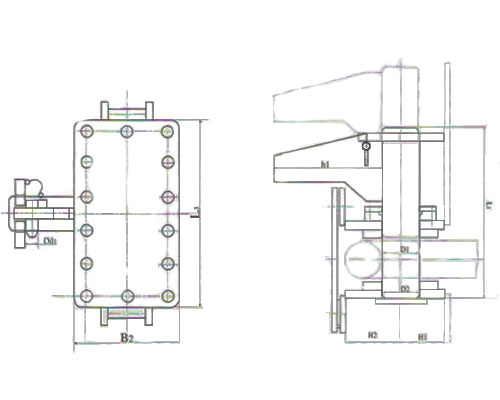

Technical specification:

Technical specification

Type	Applicable Anchor Chain Dia.(mm)	L1	L3	B2	H1	H2	D1	D2	h1	d1	Weight(kg)
52	50~52	384	460	238	63	82	54	57	190	16	40.5
56	54~56	420	486	246	69	88	58	61	194	16	48.0
60	58~60	448	504	254	74	94	62	65	198	16	53.9
64	62~64	478	524	264	80	100	66	69	202	16	60.0
68	66~68	504	542	272	84	107	70	73	207	16	70.8
73	70~73	540	570	282	87	114	75	78	212	19	81.4
78	76~78	576	594	292	95	122	80	83	217	19	92.8
84	81~84	624	628	302	102	131	85	88	223	19	106
90	87~90	670	660	316	110	140	90	93	230	19	128
95	92~95	708	686	330	118	148	95	98	235	22	146
102	98~102	762	724	346	128	158	100	103	242	22	188
111	105~111	828	770	364	139	171	110	110	251	22	231
120	114~120	892	810	386	150	184	120	123	260	22	274
