HVG MARINE MOORING EQUIPMENT 0060: Marine Steel Reel Wire Reel Type AW

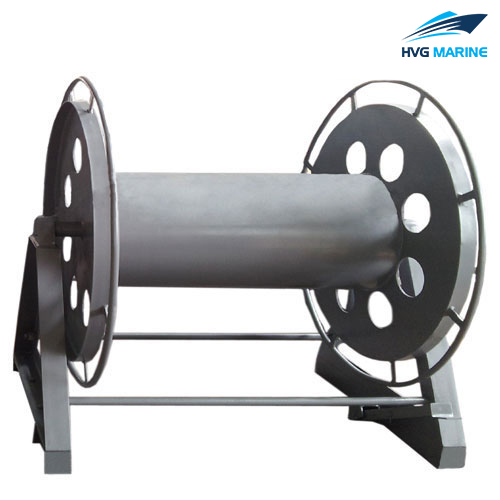

CB/T 3468-1992 marine steel wire reel is used to store steel wire for all ships. It is not suitable for towing or stranded cables.

This standard marine ship rope reel has four different types: type A, AW, B, C. Except type AW, all the other three types have crank handle. Please refer to the drawing and corresponding product parameters.

Features of CB/T 3468-1992 Type AW

1. Applicable to Store Marine Steel Ropes;
2. Model Type: AW13,AW17,AW21,AW26,AW32;
3. Applicable Steel Wire Max. Diameter: 13.0~32mm;
4. Max. Length of Steel Wire: 120mm, 190mm
5. Material: Steel;
6. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
7. Lubricated, Anti-corrosive Painting
8. Certificate: ABS, CCS, BV, DNV, NK etc.
9. Meet Customer’s Special Requirements

We supply various marine equipment. If you’re interested in our products, please feel free to contact. We’ll give you a quick and satisfactory reply.

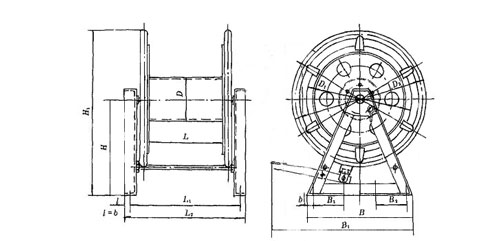

CB/T 3468-92Marine Steel Wire Reel Type AW

Technical specification:

Technical specification

Unit:mm

Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	B	B1	H	H1	Foot Bolts				Weight(kg)
Model Type	Max. Diameter of Steel Wire	D	D1	D2	L	L1	L2	B	B1	H	H1	Thread Diameter	Quantity	B	b	Weight(kg)
AW13	13	170	330	530	350	528	584	560		420	685	M16	6	240	40	58
AW17	17	230	470	670	450	628	684	620	925	495	830	M16	8	180	40	76
AW21	20.5	280	560	760	500	700	770	650	945	535	915	M16	8	190	40	113
AW26	26	340	660	860	550	750	820	695	972	610	1040	M16	8	205	40	122
AW32	32	425	800	1000	650	850	920	740	1024	665	1165	M16	8	220	40	162
