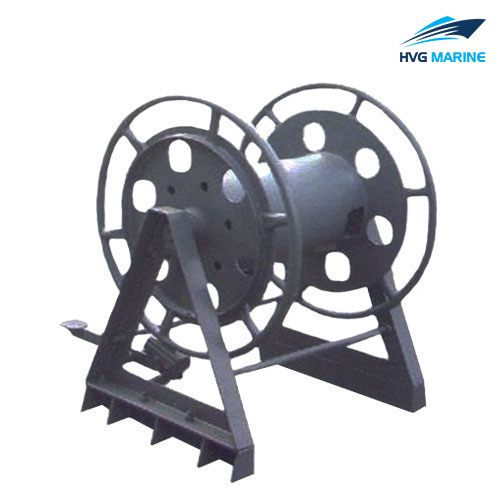

HVG MARINE MOORING EQUIPMENT 0057: Motor Driven Mooring Steel Wire Reel CB*3048-83

CB*3048-83 motor driven tightwire reel is suitable for all kinds of ships to store steel wire ropes. But it cannot be used for towing or stranded cable. This type mooring wire reel is controlled by a motor which uses operating handle to operate through the worm gear reducer.

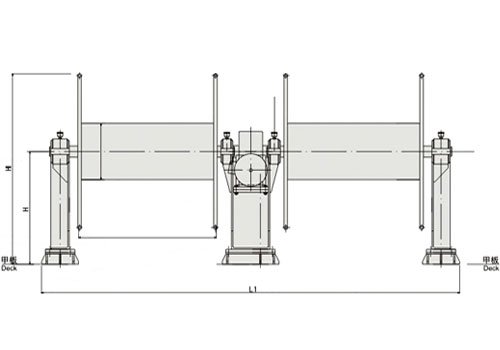

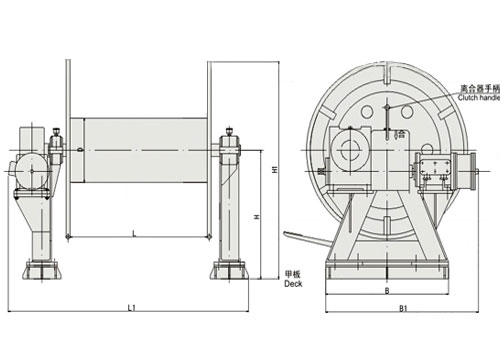

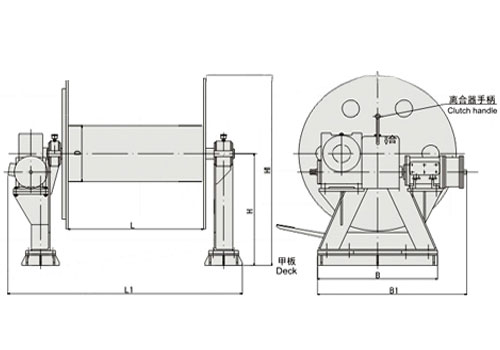

This standard wire reel has three types: Type A,Type AS ,Type B. Type AS has double reel. Different type is suitable for different sizes of steel wire. Please refer to the basic parameters on the following data sheets.

Features of CB*3048-83 Motor Driven Steel Wire Reel

1. Model: A26,A32,AS 26, AS 32, B39,B48
2. Max. Diameter of Steel Wire: 26~48.5mm;
3. Steel Length: 210mm,220mm;
4. Material: Steel;
5. No Pit, Burr, Crack or Any Other Defects;
6. Lubricated, Polished;
7. Certificate: ABS, CCS, BV, DNV, NK etc.
8. Can Meet Customer’s Special Requirements;

We supply various marine equipment. If you’re interested in our products, please feel free to contact us.

Technical specification:

Basic Parameters:

Type	Model	Max. Diameter of Steel Wire	Length of Steel Wire (m)	Motor			Speed	Rope Reeling Speed m/min -1		Max. External Size(mm)	Weight(kg)
Type	Model	Max. Diameter of Steel Wire	Length of Steel Wire (m)	Model	Power(kw)	Rate of Revolution (min -1)	Speed	1350min -1	410min -1	Max. External Size(mm)	Weight(kg)
A	A26	26	220	JZ2-H-23-4/12	4.3/1/7	1350/410	44	56	17	1330×1360×1175	545
	A32	32	210					60	18	1430×1450×1330	575
	AS 26	26	220					56	17	2345×1360×1175	773
	AS 32	32	210					60	18	2525×1450×1330	820
B	B39	39	210					64	19	1800×1360×1075	700
B	B48	48.5	210					73	22	2060×1410×1270	824
