HVG MARINE ELECTRIC EQUIPMENT 0085

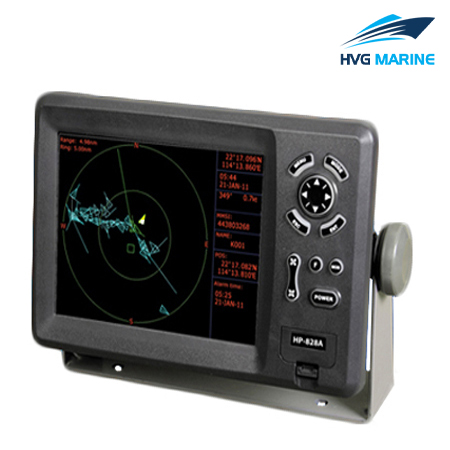

HVG MARINE ELECTRIC EQUIPMENT 0085: 8-Inch Color Display GPS Plotter

8-Inch Color Display GPS Plotter is designed for both fresh water and seawater navigation. It is ideal for vessels which demand high performance. This plotter supports various display modes,such as plotter screen, Nav. Data, satellite information, compass screen. It has selectable C-Map MAX and K-chart, and it also has tide table. The unique daylight design makes you read easily in the sunlight. It is an excellent helper for your navigation.

Features

GOTO track navigation
Perspective view
Backlight
Internal GPS receiver and AIS
Stable performance

Technical specification:

Specifications

Project	Data
Display size	8’’ Color LCD
Waypoints	14,000
Tracks	21,000
Routes	Waypoint up to 169 points each, plus MOB and Track Navigation or Goto Track modes
Basemap	Built-in Onwa K-Chart
External Map	SD Cards slot for C-Map MAX
Plot interval	1s to 99h or 0.01nm to 9.99nm
Plotting scales	0.01nm to 1,000nm
User data storage	Internal backup of user settings, or external SD-card
Alarms	XTE, Anchor drag, arrival, overspeed, AIS alarm
Projection	Mercator projection
Position format	Lat/Lon
Perspective view	On/Off
AIS function	Frequency	156.025 to 162.025 MHz in 25 KHz steps
	Output power	2W
	Channel bandwidth	25 KHz
	Channel step	25 KHz
	Modulation mode	25KHz GMSK(AIS,TX AND RX) 25KHz AFSK (DSC,RX only)
	Bit rate	9600b/s±50ppm(GMSK) 1200b/s±50ppm(FSK)
GPS receiver	Acquisition time	Cold start: 27s average
		Warm start: 27s average
		Hot start: 1s average
	Update time	1s
	Accuracy	Position: < 2.5m, 95% without S/A Velocity: 0.1m/s without S/A Time: ±100ns synchronized to GPS time
	Interface	NMEA 0138 input, RS232 output
	Antenna	HA-017
	Dynamics	Altitude: 50,000m Max Velocity: 500m/s Acceleration: 4g Max
