HVG MARINE ELECTRIC EQUIPMENT 0083

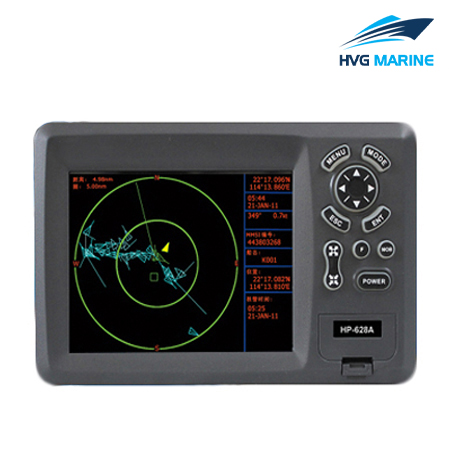

HVG MARINE ELECTRIC EQUIPMENT 0083: 5.6-Inch HD Liquid Crystal Display Chartplotter

5.6-Inch HD Liquid Crystal Display Chartplotter equips C-Map MAX and K-chart to expand your navigational ability, high resolution TFT day-view LCD display to read easily, internal GPS receiver to help you navigate effectively, AIS to improve safety, autopilot integration to allow you to preprogram a course to follow. This product has reliable performance, high precision and long service life. If you are interested in our products, please feel free to contact us.

Features

High definition LCD
Satellite information
C-Map MAX and K-Chart selectable
Versatile display mode included
Tide table
Waterproof

Technical specification:

Specification

Project	Data
Display size	5.6’’ HD LCD
Waypoints	14,000
Tracks	21,000
Routes	waypoint up to 169 points each, plus MOB and Track Navigation or Goto Track modes
Basemap	built-in Onwa K-Chart
External Map	SD Cards slot for C-Map MAX
Plot interval	1s to 99h or 0.01nm to 9.99nm
Plotting scales	0.01nm to 1,000nm
User data storage	Internal backup of user settings, or external SD-card
Alarms	XTE, Anchor drag, arrival, overspeed, AIS alarm
Projection	Mercator projection
Position format	Lat/Lon
Perspective view	On/Off
AIS function	Frequency	156.025 to 162.025 MHz in 25 KHz steps
	Output Power	2W
	Channel Bandwidth	25 KHz
	Channel Step	25 KHz
	Modulation Mode	25KHz GMSK(AIS,TX AND RX) 25KHz AFSK (DSC,RX only)
	Bit Rate	9600b/s±50ppm(GMSK) 1200b/s±50ppm(FSK)
GPS receiver	Acquisition Time	Cold Start: 27s average
		Warm Start: 27s average
		Hot Start: 1s average
	Update Time	1s
	Accuracy	Position: < 2.5m, 95% without S/A Velocity: 0.1m/s without S/A Time: ±100ns synchronized to GPS time
	Interface	NMEA 0138 input, RS232 output

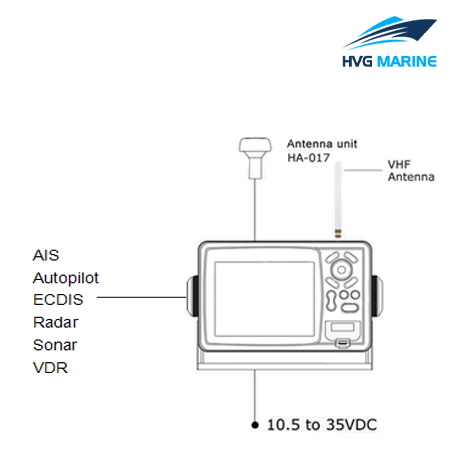

	Antenna	HA-017
	Dynamics	Altitude: 50,000m Max Velocity: 500m/s Acceleration: 4g Max
