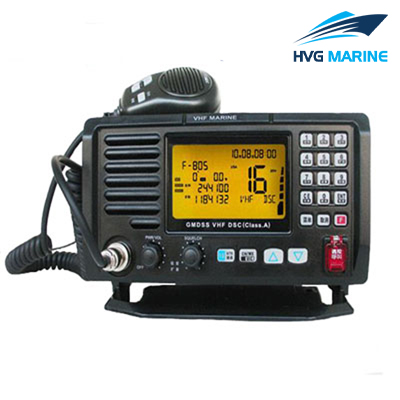

HVG MARINE ELECTRIC EQUIPMENT 0081: Class-A VHF DSC Ship Transceiver

DSC (Digital Selective Calling) is a new feature brought to radio communications by the arrival of GMDSS (Global Maritime Distress Safety Systems). This feature is found on VHF and MF/HF GMDSS radio systems. A calling station may direct a call to a specific vessel by entering a MMSI (Maritime Mobile Service Identity) number and initiating a call. The receiving station decodes the number and if there is a match an alert is sounded indicating a communications request has been made. Other information may be embedded in the coded signal indicating nature of the call and operating frequency requested. If the coded signal is of a distress, it will sound an alarm on all receiving stations and indicate the position of the calling station. This allows for vessels in the area to respond and render aid.

Features:

• Comply with IMO. A.803(19) resolution &ITU-R A.694(17) resolution
• All US, International and Canadian, 10 weather channels
• Automatically record incoming messages
  • Distress messages: 32
  • Other messages:32
  • Collision messages: 72
• DSC system(DSC 70 channel watch)
• Dual-watch and Tri-watch
• Collision avoidance alarm display
• Received signal strength indication
• Priority scan
• FM(88-108MHz) radio receiver
• Navigation function
• Extend speaker louder function
• 64 waypoints stored
• User-program channel group
• Timing alarm clock
