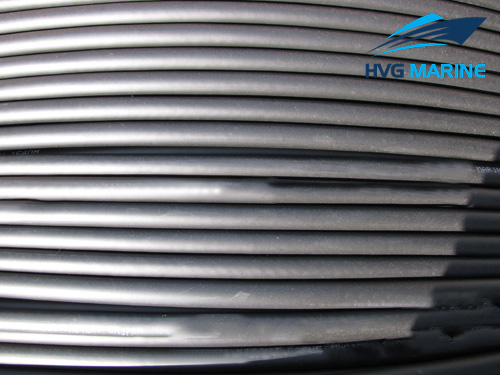

HVG MARINE CABLE 0055: Marine Power Cable

SPECIFICATION & STANDARDS

• IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359
• IEC60092 351 IEC60332-1 IEC60332-3Cat.A
• IEC61034-2 IEC 60754-2 3A

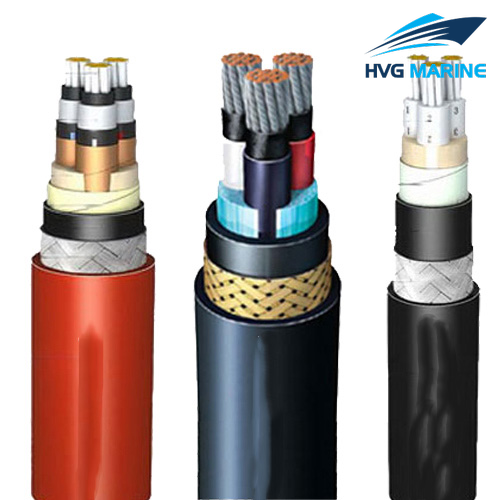

Construction:

• Conductor: tinned copper
• Insulation: EPR/XLPE
• Filler
• Tape
• Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)
• Armored: tinned copper wire braid
• (Galvanized steel wire braid)
• Outer sheath: PVC/PCP/PO (SHF1, SHF2)

Flammability Features:

• DA: Single cable flame retardant
• SA: Bunched cable flame retardant
• SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.
• NC:Fire Resistant,halogen-free, low-smoke, low-toxicity.

Specifications:

• Cores: 1, 2, 3, 4, 5
• Nominal Cross-section Areas:1 mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,
• 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm².

Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS,KR; 90℃
