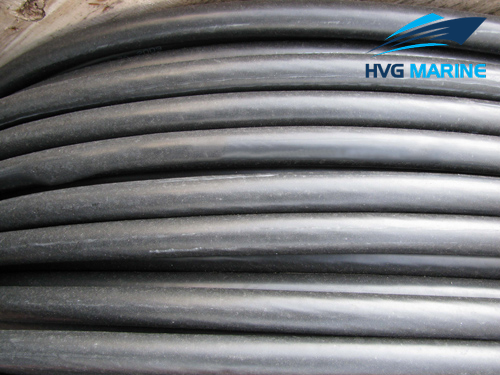

HVG MARINE CABLE 0054: Marine Telecommunication Cables

Applications: Marine communications cable is intended for signal transmission and control systems in a variety of ship communications, computer , information processing equipment.

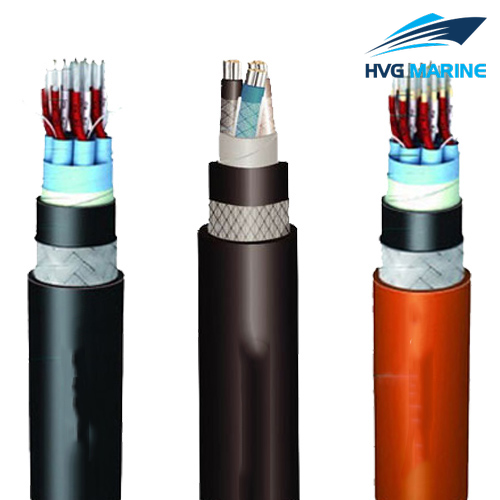

Construction:

• 1. Conductor: tinned copper
• 2. Insulation: XLPE/EPR
• 3. Tape
• 4. Individual screen: tinned copper wire braided
• 5. Tape
• 6. Inner sheath: PO (SHF1, SHF2)
• 7. Screen/Armored: tinned copper wire braid
• 8. Outer sheath: PO (SHF1, SHF2)

Marine Cable Flammability Features:

• DA: Single cable flame retardant
• SA: Bunched cable flame retardant
• SC: Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.
• NC: Fire resistant,halogen-free, low-smoke, low-toxicity.

Specifications:

• Paires: 1, 2, 3, 4, 7, 10, 14,19, 24, 30, 37,48
• Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm²

Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS; 85℃
