HVG MARINE CABLE 0053: Marine Control Cables

Application: The cable is intended for power, lighting and control system of shipboard and off-shore building.

SPECIFICATION & STANDARDS SPECIFICATION & STANDARDS

Construction:IEC60092-376
Conductor:IEC60228 Class 2, Class 5
Insulation:IEC60092-351
sheath:IEC60092-359
Flame Retardant:IEC60332-3-22
Smoke Density:IEC61034
Halogen Index:IEC60754

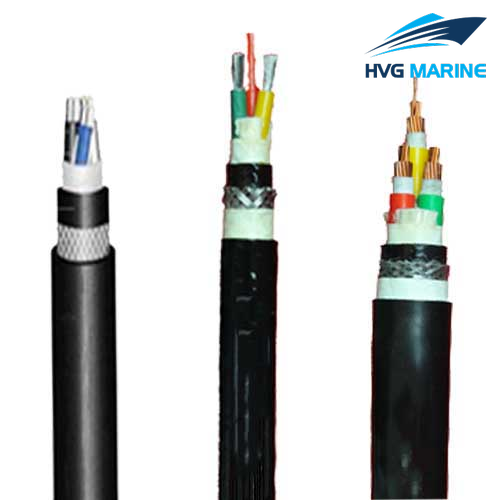

The Marine Cable Construction:

• 1. Conductor: Stranded copper wire or tinned copper wire Class 2 or Class 5
• 2. Insulation: EPR/XLPE
• 3. Core screen: Tinned copper wire braid
• 4. Tape
• 5. Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)
• 6. Armored: tinned copper wire braid
• (Galvanized steel wire braid)
• 7. Outer sheath: PVC/PO (SHF1, SHF2)

Flammability Features:

• DA: Single cable flame retardant
• SA: Bunched cable flame retardant
• SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.

Specifications:

• Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
• Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm²,
• 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm².

Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS,KR; 90℃
