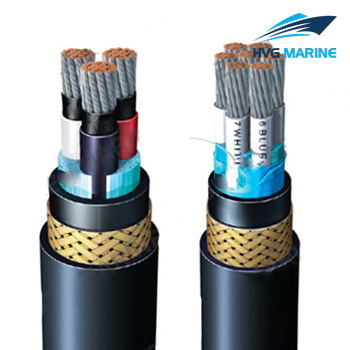

HVG MARINE CABLE 0044: JIS C3410 Individual Screen Shipboard Control Cable
Application: The cable is fixed installation, used for Control, signal system in ship.

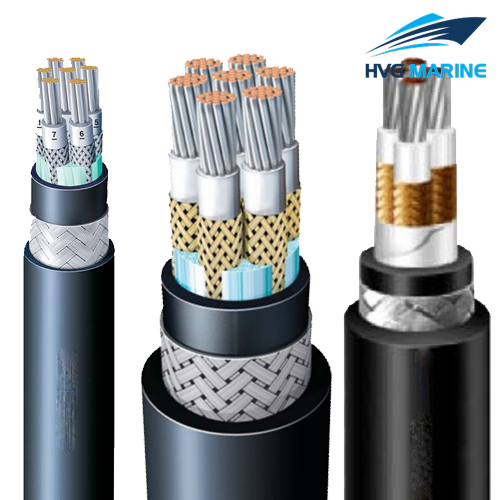

JIS C 3410 individual screen control cable model
- 250V MPY-S, FA-MPY-S
- 250V MPYC-S, FA-MPYC-S
- 250V MPYCY-S, FA-MPYCY-S
JIS C 3410 individual screen control cable Standards
– Design guide : JIS C 3410(1999/2010)
– Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
– Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)
– Max. conductor temperature :85
Recommendations
Minimum cable bending radius
The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than :
6 times the external diameter of cable
Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
Minimum recommended temperature of installations :
- 10°C Ship wiring cable with PVC sheath
- 20°C Elastomeric on/off shore cables
Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation and sheathing compound.
Specifications:
- Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
- Nominal Cross-section Areas: 1mm2
Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
