MARINE CABLE 0040
    • MARINE CABLE 0040
    HVG MARINE CABLE 0040

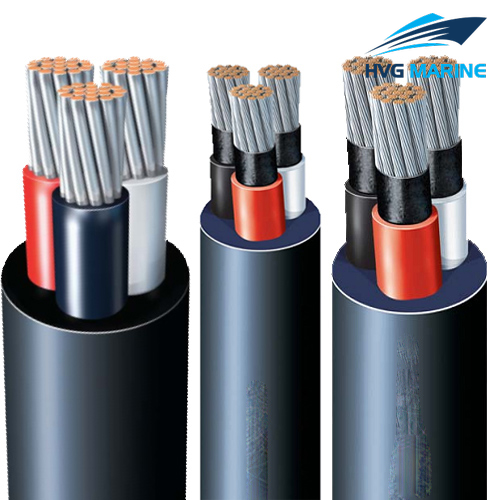

    HVG MARINE CABLE 0040: JIS C3410 Portable Flexible Cable

    DESIGNATION

    0.6/1kV DPNP, 0.6/1kV TPNP, 0.6/1kV FPNP

    JISC 3410 Portable Flexible Cable APPLICATION STANDARD

    – Design guide : JIS C 3410(1999/2010)
    – Flame retardant : IEC 60332-1
    – Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)

    – Max. conductor temperature : 85℃

    JISC 3410 Portable Flexible Cable Construction

    Conductor D(T,F) Tinned annealed stranded copper, class 2 according to IEC 60228
    Insulation P 85°C EPR as per IEC 60092-351
    Cabling Insulated conductors shall be cabled.
    Flame retardant & non-hygroscopic fillers may be used
    Sheath NP PCP as per JIS C 3410
    Core identification 2C Black, White
    3C Black, White, Red
    4C Black, White, Red, Green
    Outer sheath color Black

    Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃

    Technical specification:

    • JISC 3410 Portable Flexible Cable specification
    No. of
    Cores    		 Conductor Thick. of insulation Thick. of
    Sheath    		 Nom. overall dia. Tolerance Cable
    Weight
    Size Construction O.D
    mm2 No./mm mm mm mm mm mm kg/km
    2 0.75 24/0.20 1.13 1 1.4 9.7 0.4 130
    2 1 32/0.20 1.27 1 1.4 9.9 0.4 135
    2 1.5 30/0.25 1.58 1 1.5 10.8 0.4 165
    2 2.5 49/0.25 2.02 1 1.6 11.8 0.5 205
    2 4 55/0.30 2.57 1 1.7 13.1 0.5 265
    2 6 82/0.30 3.14 1 1.8 14.5 0.6 340
    3 0.75 24/0.20 1.13 1 1.4 10.2 0.4 145
    3 1 32/0.20 1.27 1 1.5 10.7 0.4 160
    3 1.5 30/0.25 1.58 1 1.5 11.4 0.5 190
    3 2.5 49/0.25 2.02 1 1.6 12.5 0.5 240
    3 4 55/0.30 2.57 1 1.8 14.1 0.6 325
    3 6 82/0.30 3.14 1 1.9 15.6 0.6 420
    4 0.75 24/0.20 1.13 1 1.5 11.3 0.5 175
    4 1 32/0.20 1.27 1 1.6 11.8 0.5 200
    4 1.5 30/0.25 1.58 1 1.6 12.2 0.5 225
    4 2.5 49/0.25 2.02 1 1.8 14.1 0.6 310
    4 4 55/0.30 2.57 1 1.9 15.6 0.6 405
    4 6 82/0.30 3.14 1 2 17.2 0.7 525
