HVG MARINE CABLE 0039

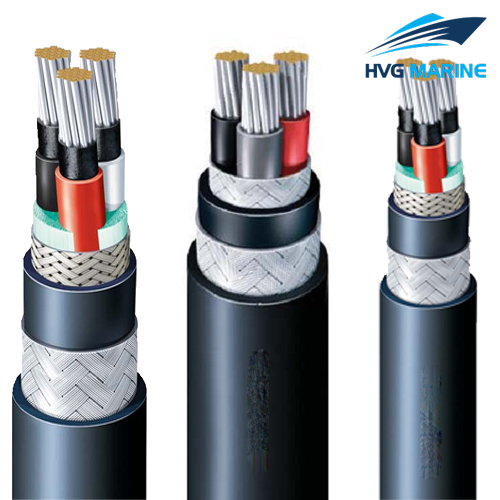

HVG MARINE CABLE 0039: JISC 3410 LV Collective Screen Power Cable

Application

This Cable can be applied in Marine&Offshore and various ships, ship repair and oil platforms and other offshore buildings control device and general electric lighting,machinery and equipment of factories and mines are also equally applicable.

JIS C3410 LV Collective Screen Power Cable Standards

JISC 3410-1999/2010
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

JIS C3410 LV Collective Screen Power Cable Model

[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS
[FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS
0.6/1kV SPYCBS, FA- SPYCBS
0.6/1kV SPYCBYS, FA- SPYCBYS
0.6/1kV DPYS, TPYS, FA-DPYS, FA-TPYS
0.6/1kV DPYCS, TPYCS, FA-DPYCS, FA-TPYCS
0.6/1kV DPYCYS, TPYCYS, FA-DPYCYS, FA-TPYCYS

Technical specification:

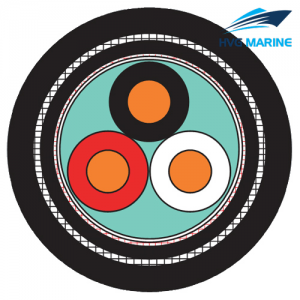

JIS C3410 LV Collective Screen Power Cable Structure

Conductor	S(D,T)	Tinned annealed stranded copper, class 2 according to IEC 60228
Conductor screen		Semi-conducting compound
Insulation	P	85°C EPR as per IEC 60092-351
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall shield	S	Tinned copper wire braid
Bedding	Y	PVC as per JIS C 3401
Armor	C (CB)	Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath	Y	PVC as per JIS C 3401
Core identification		1C Black 2C Black, White 3C Black, White, Red
Outer sheath color		Black
