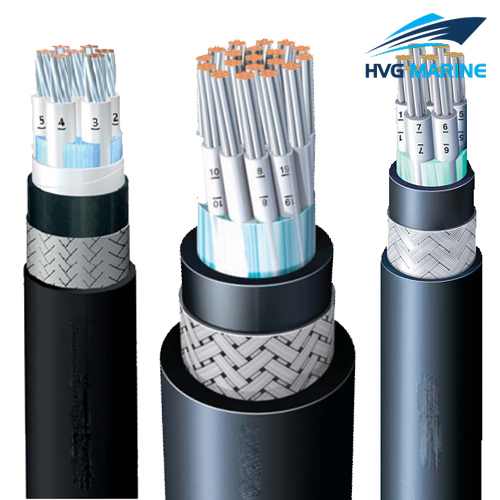

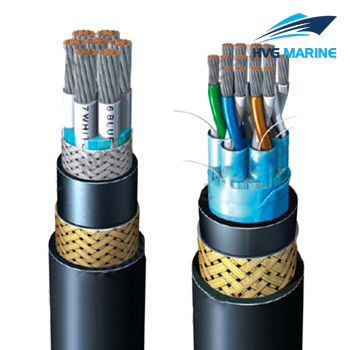

HVG MARINE CABLE 0042: JIS C3410 Armored Shipboard Control Cable
Application: The cable is fixed installation, used for Control, signal system in ship.
JIS C3410 Armored Shipboard Control Cable model
- 250V MPYC, FA-MPYC
- 250V MPYCY, FA-MPYCY
JIS C3410 Armored Shipboard Control Cable Standards
- Design guide : JIS C 3410(1999/2010)
- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
- Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)
- Max. conductor temperature :85
Recommendations
- Minimum cable bending radius
- The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than : 6 times the external diameter of cable
- Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
- Minimum recommended temperature of installations :
-10°C Ship wiring cable with PVC sheath
-20°C Elastomeric on/off shore cables - Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation and sheathing compound.

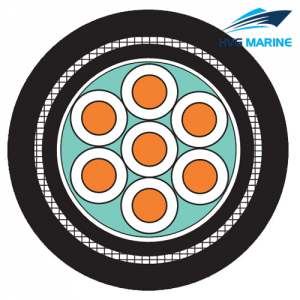

Specifications:
- Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.
- Nominal Cross-section Areas: 1mm2
Certificates: CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
